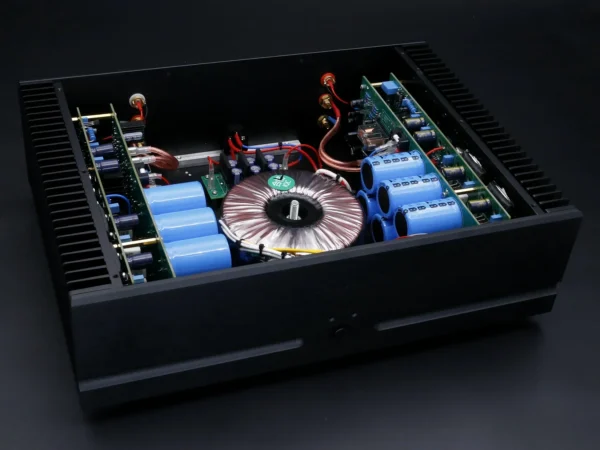

CHUBAN A5.3 Reference-Grade Burmester Circuitry, Audiophile-Grade Class A Power Amplifier, High Power 50W/8 Ohms, 100W/4 Ohms

Product Progress

2013: The first-generation 50W Class A amplifier, A5, was launched.

February 2019: A5.2 features an upgraded main amplifier board and power protection board, significantly improving sound quality and reliability.

January 2024: A5.3 is released, featuring comprehensive AP-assisted design, testing, and tuning, as well as extensive sound testing.

Core Circuitry

Utilizes a fully symmetrical X-Amp ultra-fast power amplification circuit.

No audio input/decoupling capacitors, pure DC design, and wide high and low frequency extension. Reference unit is the Burmester 956.

Excellent control: This amplifier features a high damping coefficient, providing powerful control.

High resolution, balanced and transparent sound across the three frequency ranges, making it an invaluable HiFi tool.

It possesses the rigorous sound of Burmester: high resolution and first-class control.

Excellent low-frequency response, with outstanding control, quantity, and resolution.

Materials Used

High-end 500W Nippon Steel transformer. No vibration or noise, low voltage drop due to pure copper wire winding

Comprehensive speaker protection

4 pairs of precision-matched Sanken C2922/A1216 tubes, 2 pairs per channel, powerful enough to drive floorstanding speakers

Standard version uses: 12 Japanese-made Rubycon 50V 10000uF audio electrolytic capacitors

BC capacitor version uses: 12 Vishay BC, LL long-life, 056 series audiophile-grade audio filtering electrolytic capacitors

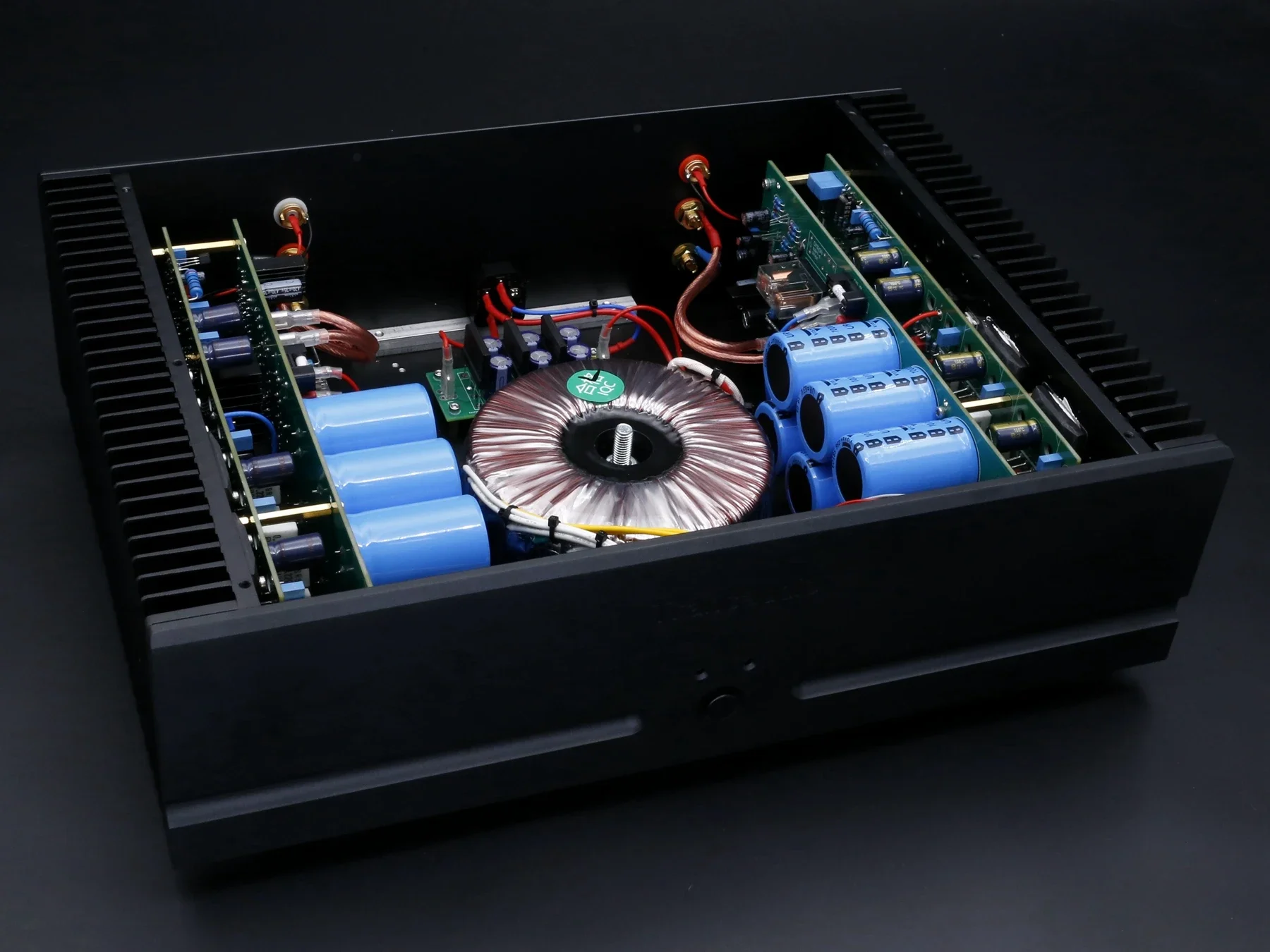

Left and right channels are completely independent, reducing crosstalk interference

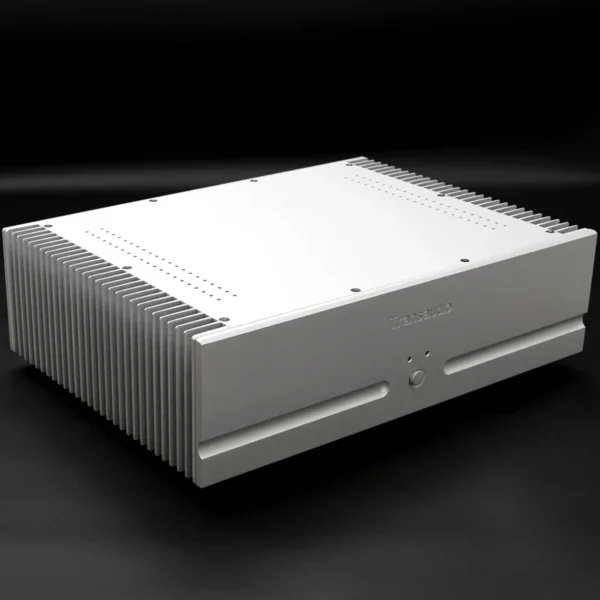

CNC machined standard-size all-aluminum chassis

All units and finished boards are soldered with American ALPHA solder wire, ensuring stable soldering quality, low internal resistance, bright finish, and strong oxidation resistance

Class A high quiescent current design, warm, comfortable sound, and punchy bass

Improved acoustic binding posts and input RCA connectors

3rd generation A5.3 power amplifier AP test parameters Test data with 800W load (8 ohms):

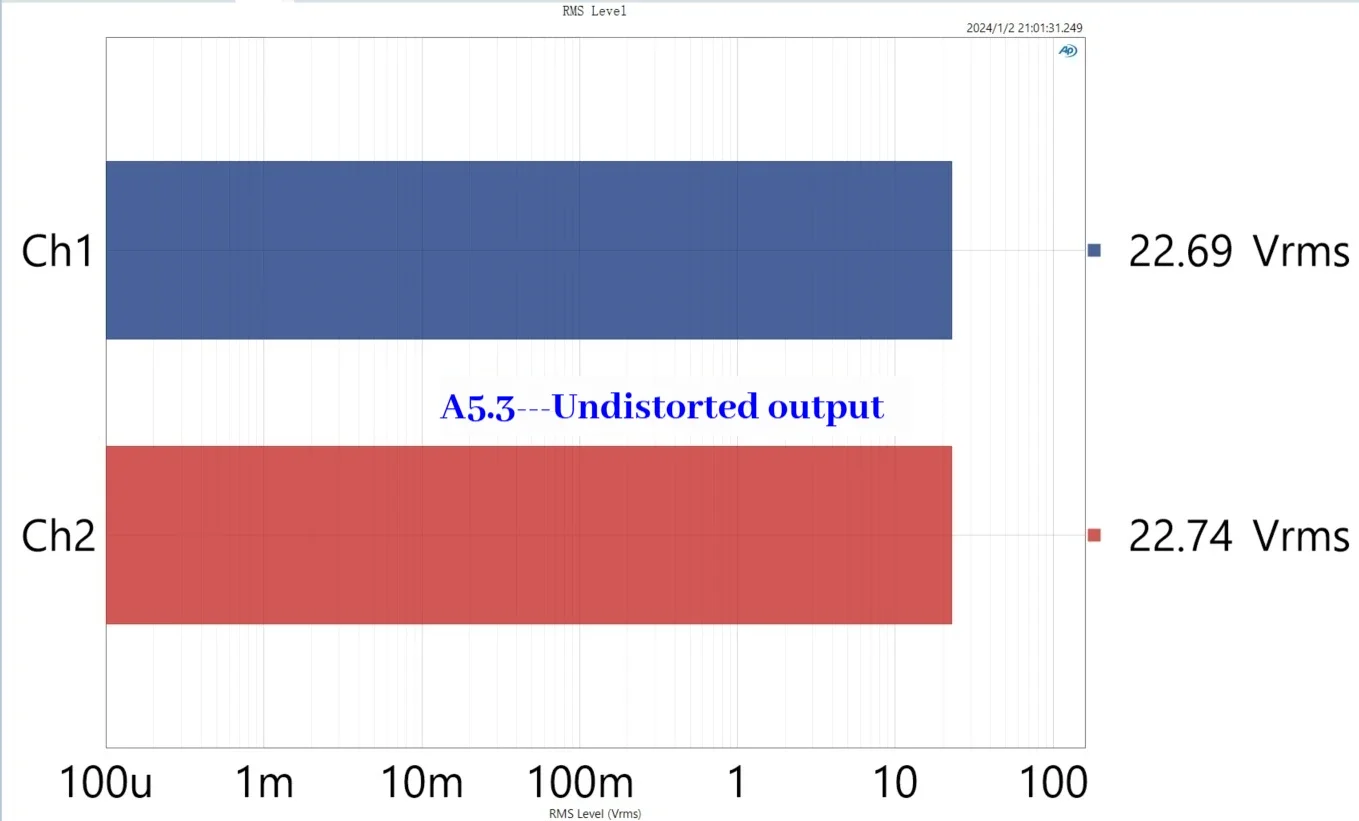

Output RMS: 22.7Vrms

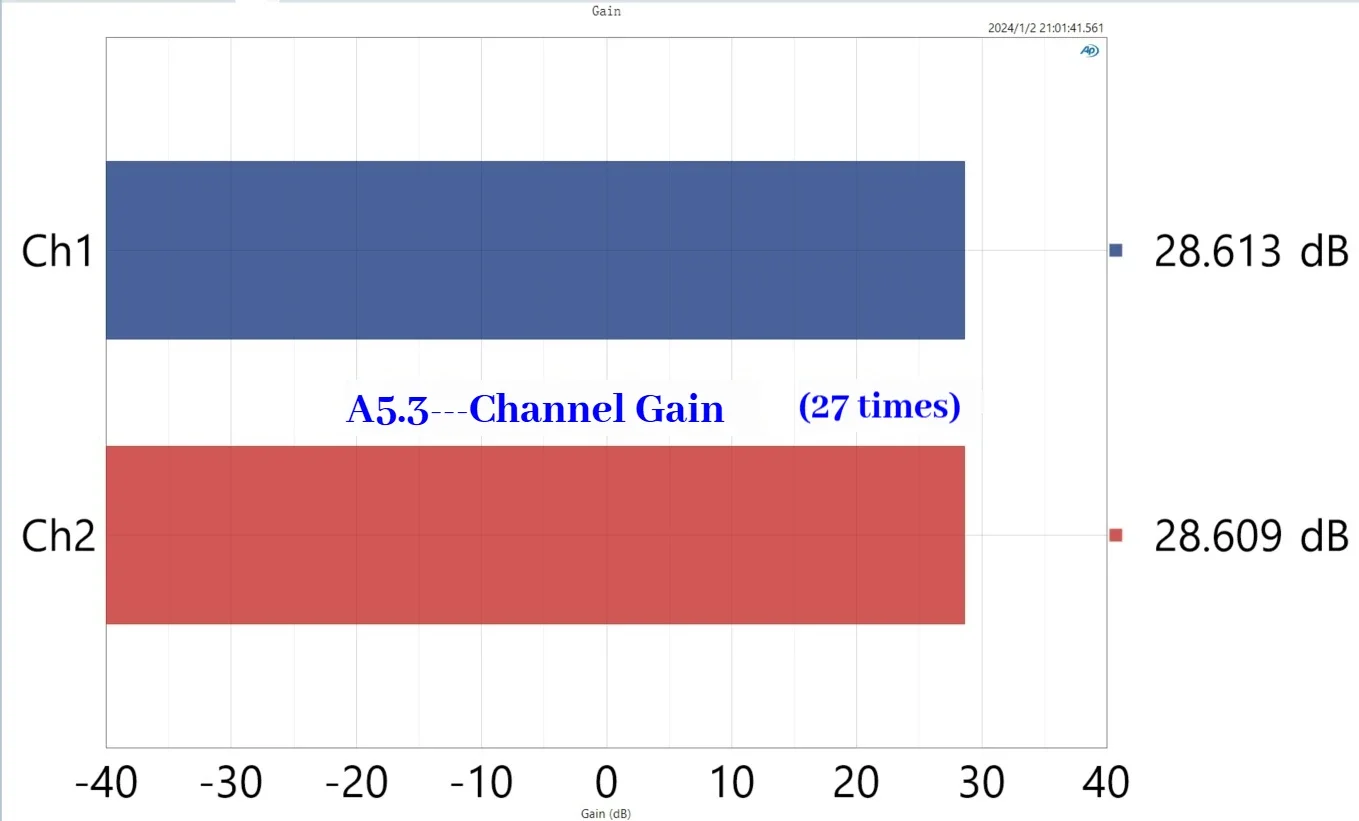

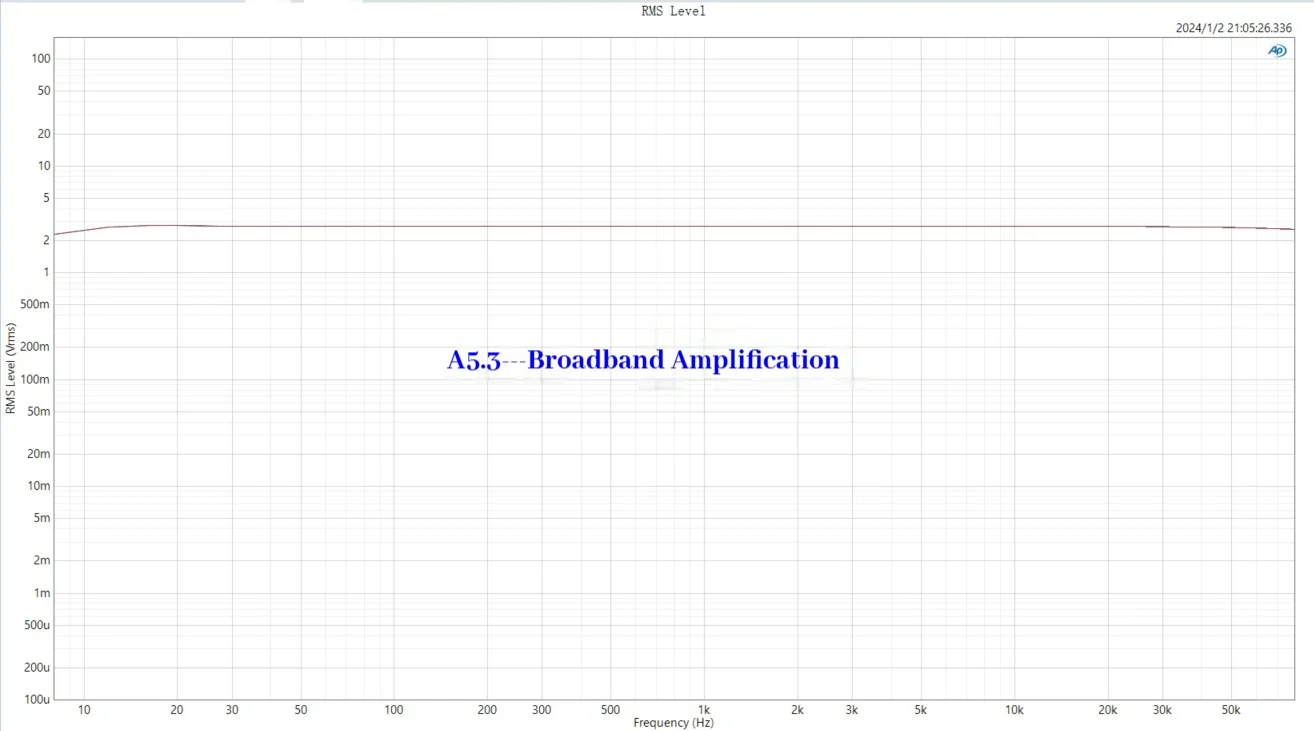

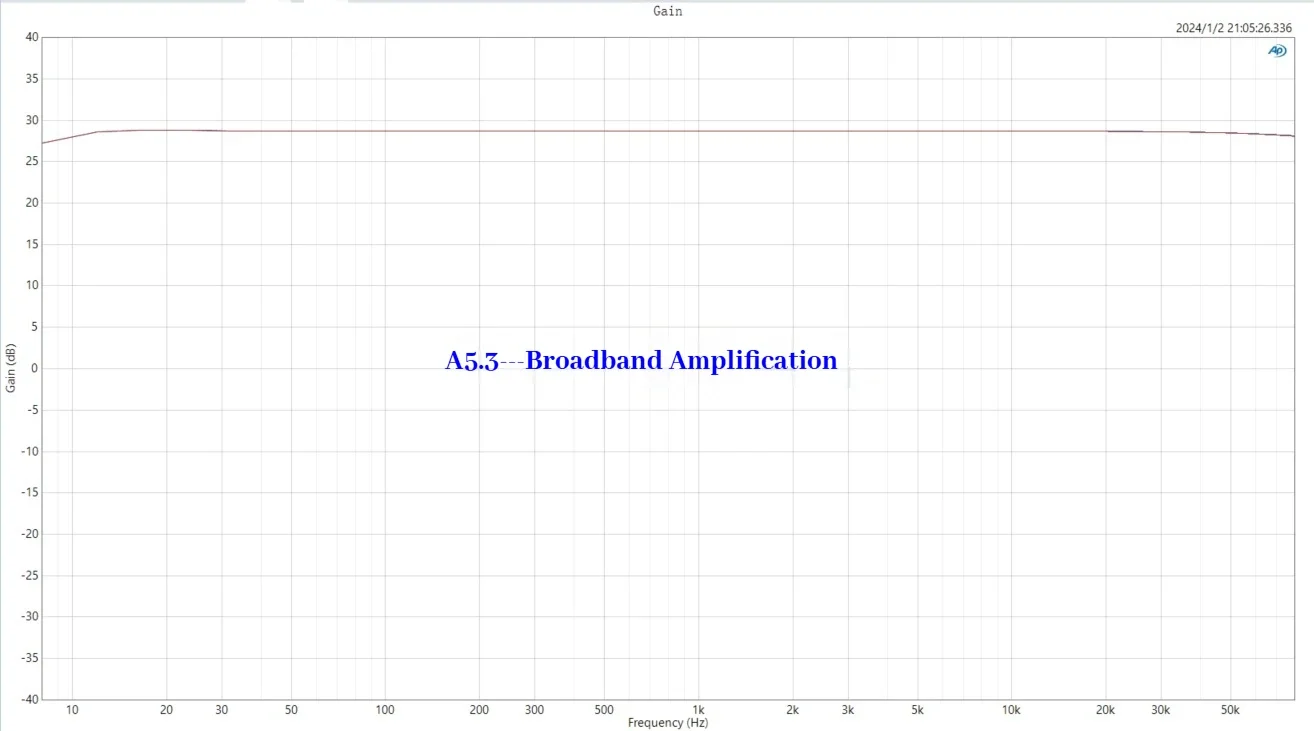

Channel Gain: 28.6dB (27.0x)

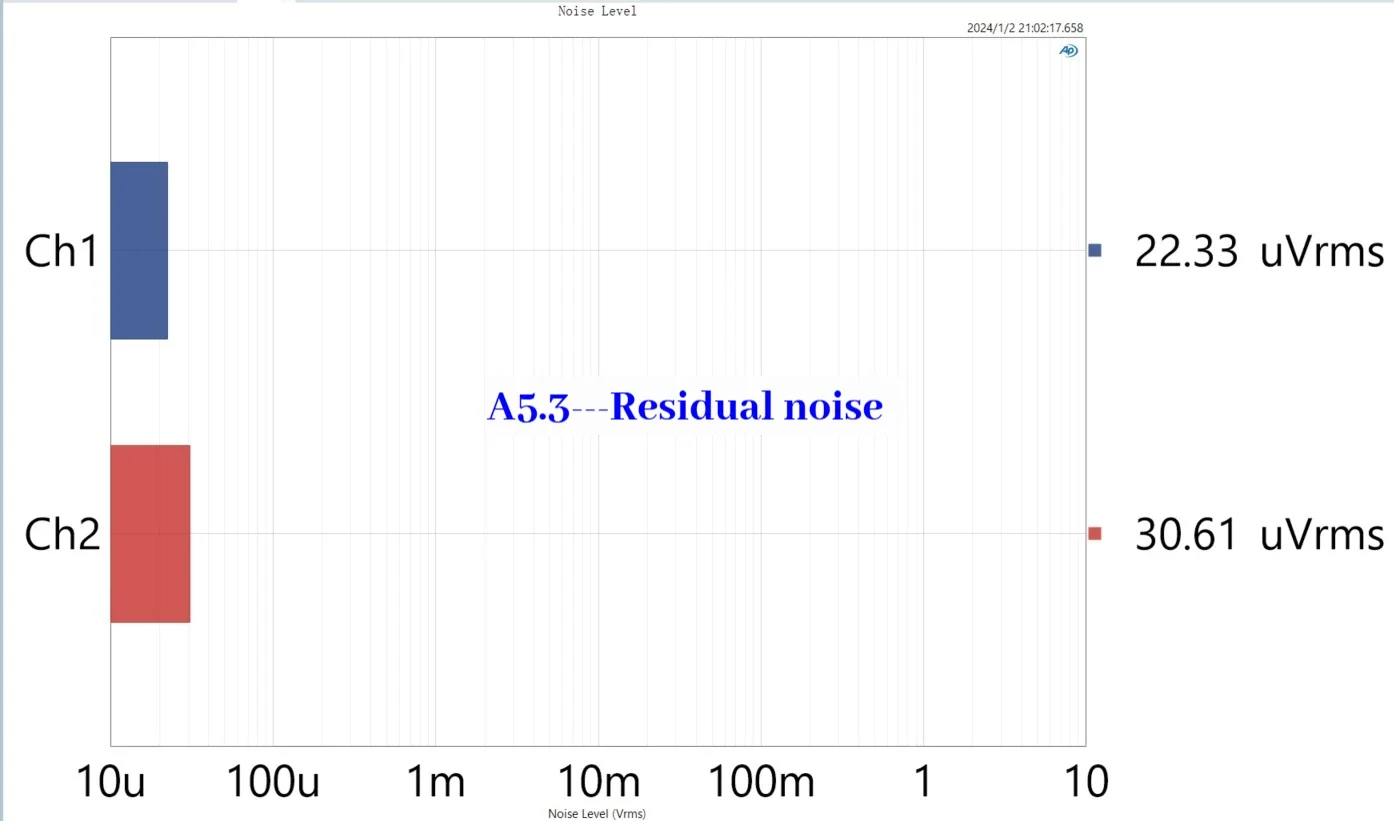

Residual Noise: 22.3uVrms

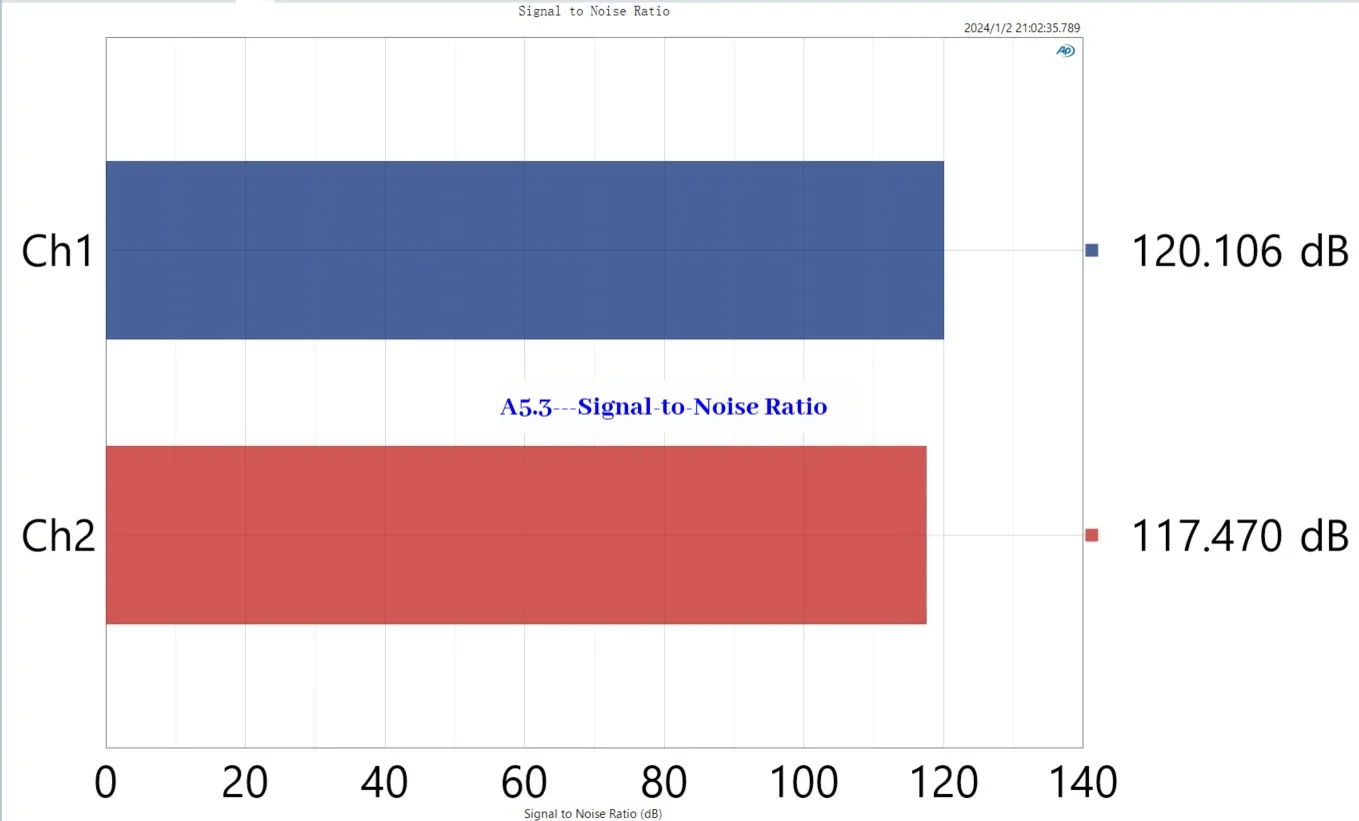

Signal-to-Noise Ratio: 120.1dB

Dynamic Range: 120.1dB

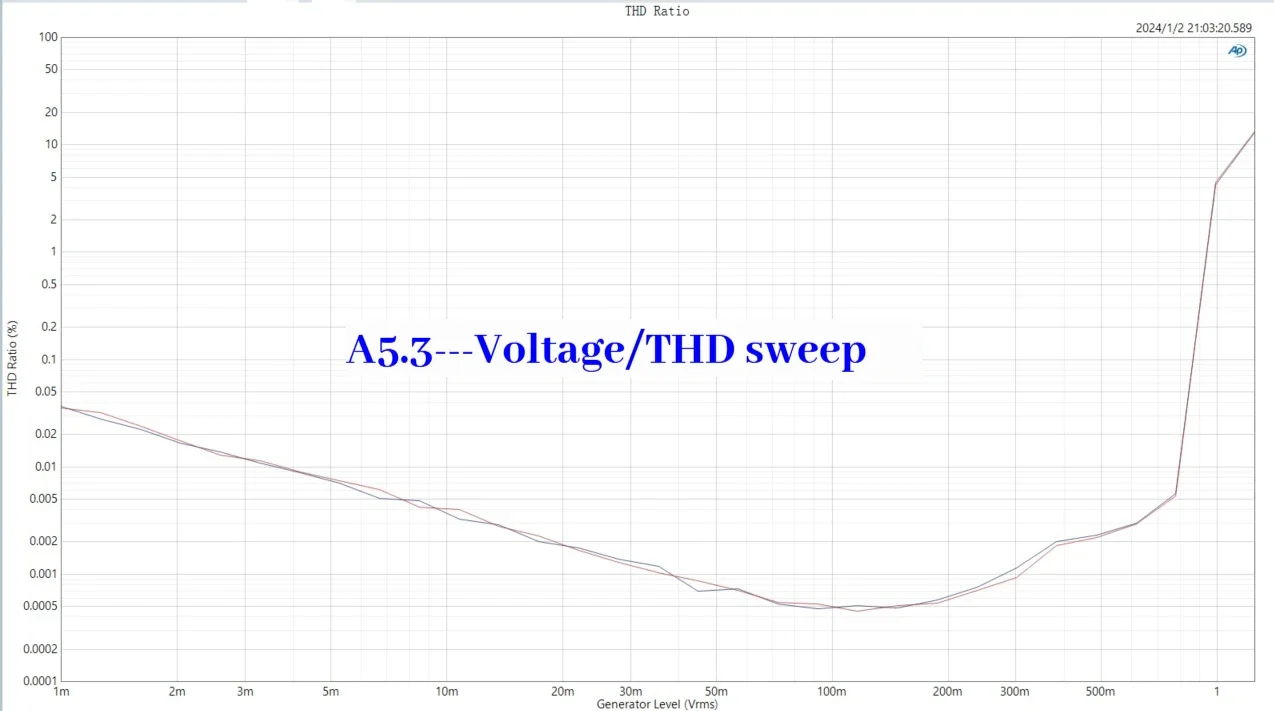

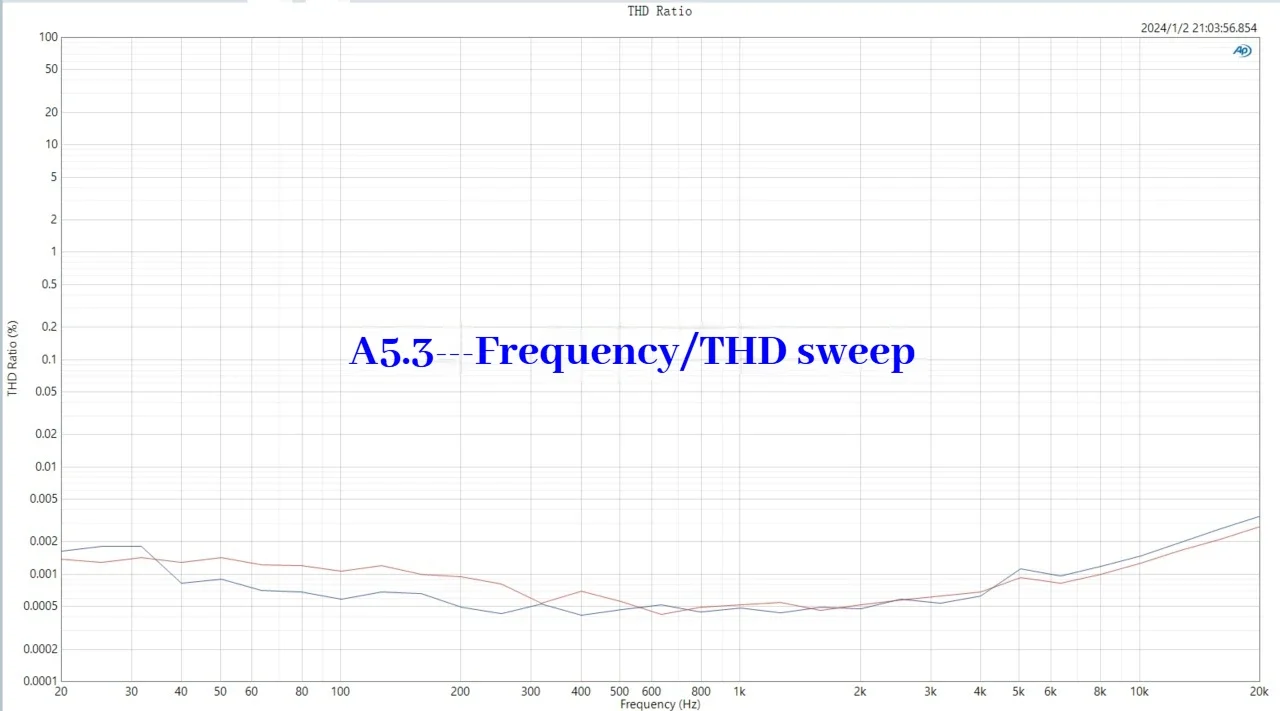

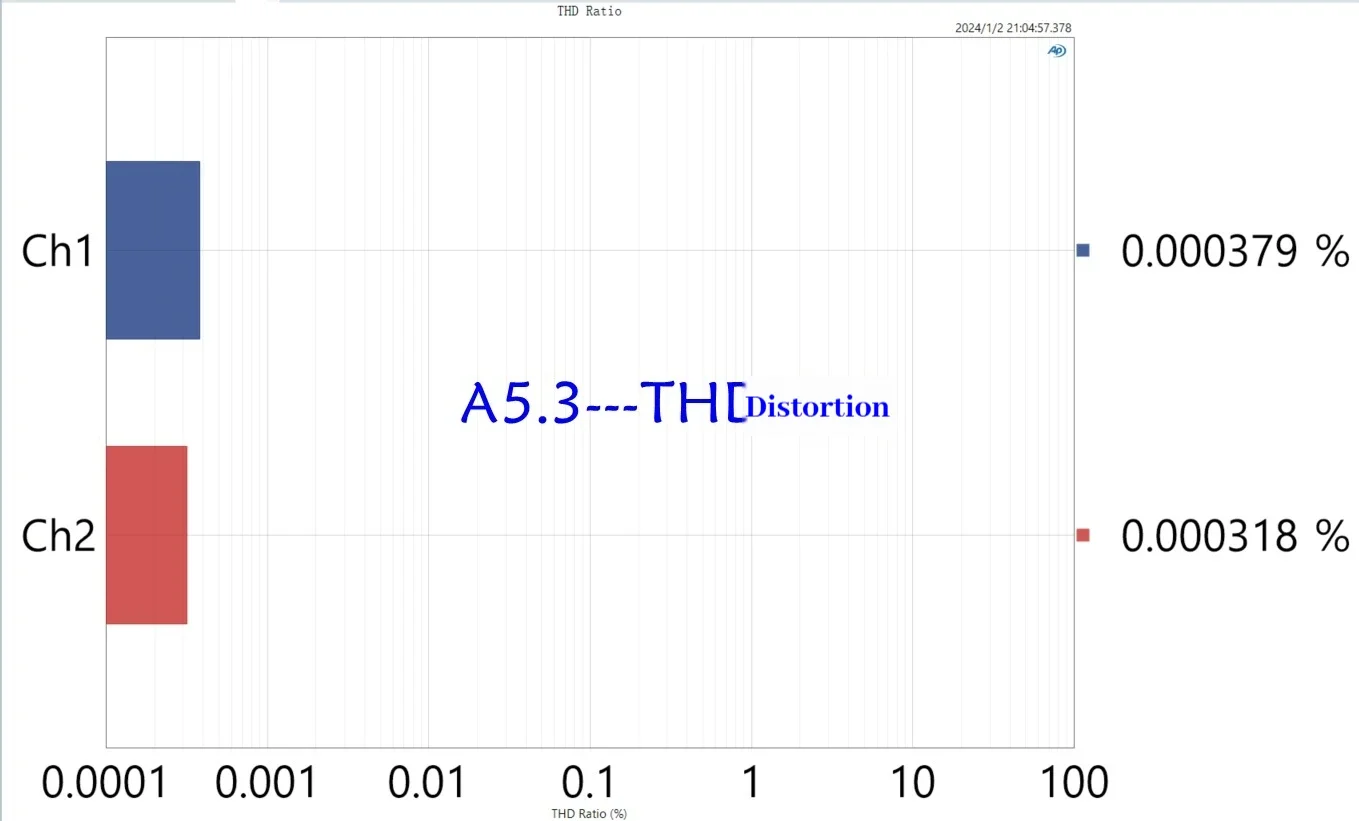

THD Distortion: 0.00032%

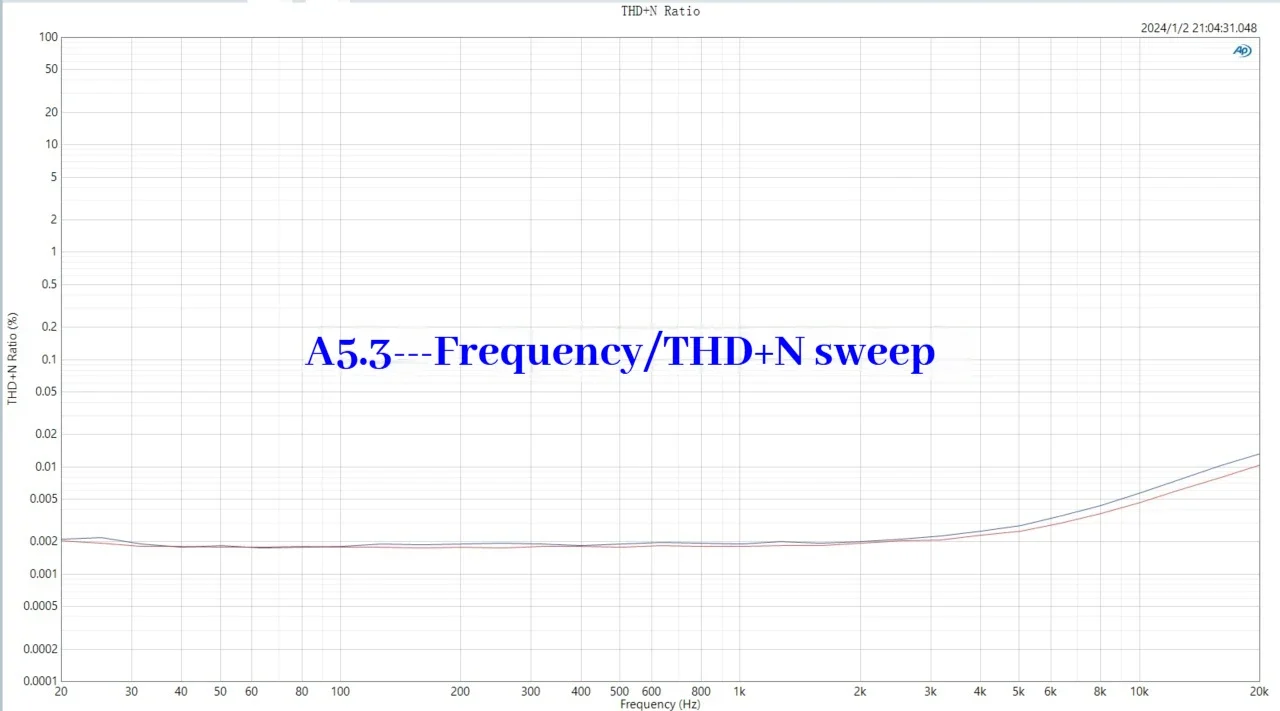

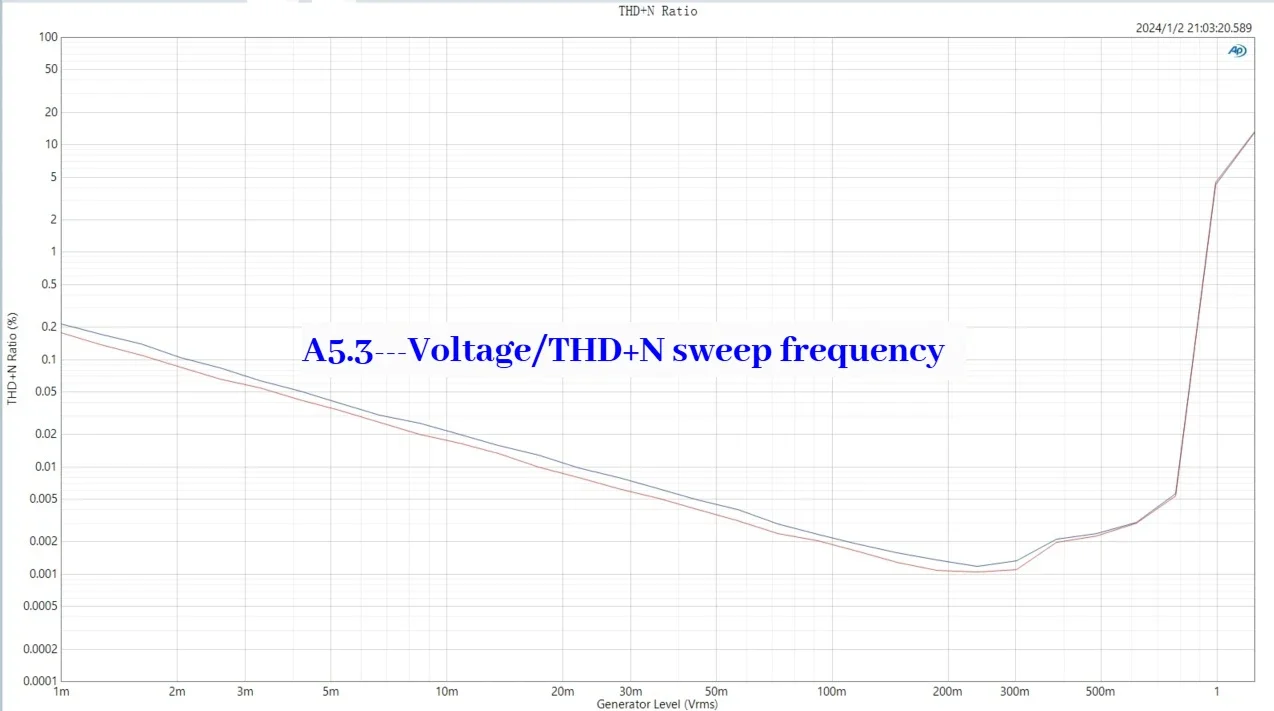

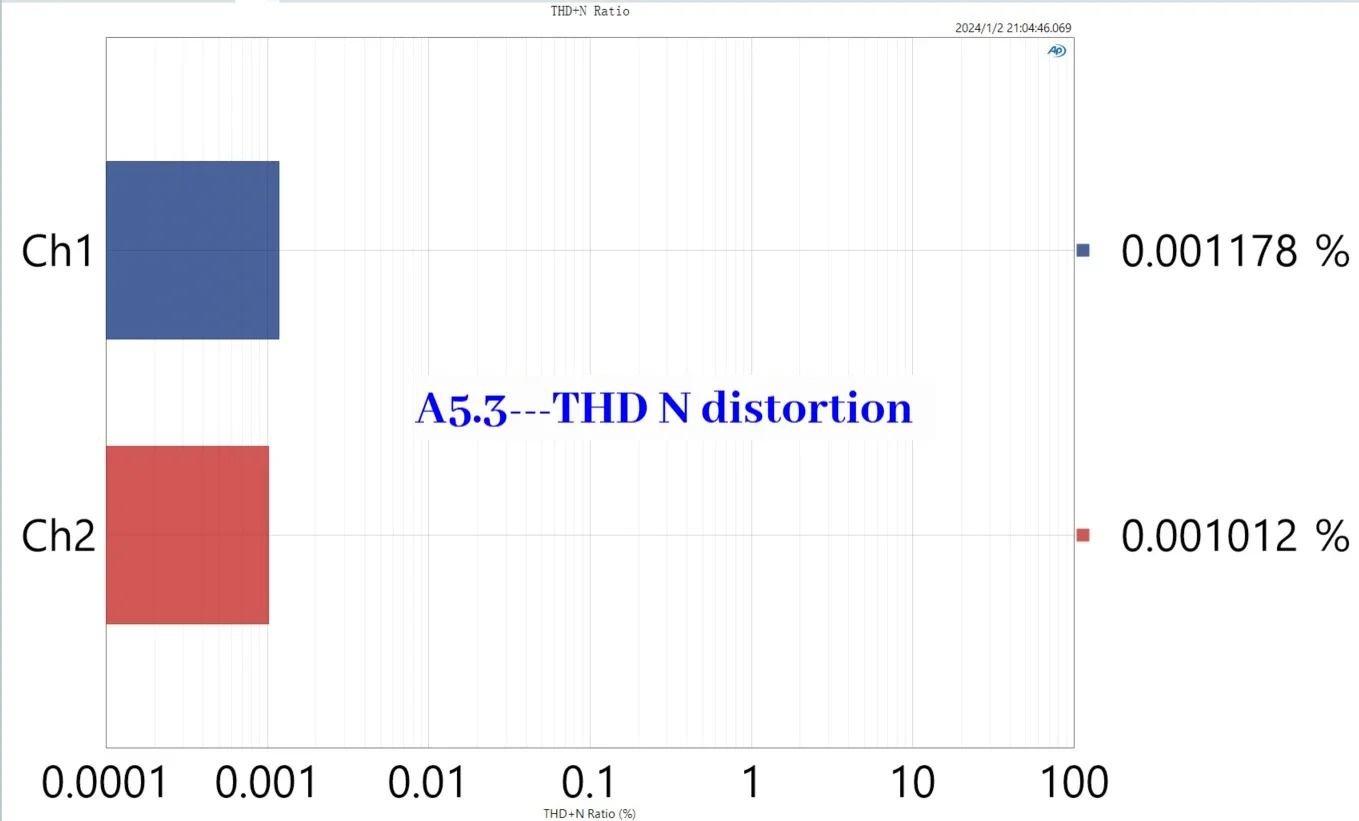

THD+N Distortion: 0.0010%

Intermodulation Distortion: 0.005%

Input Sensitivity: 0.85Vrms

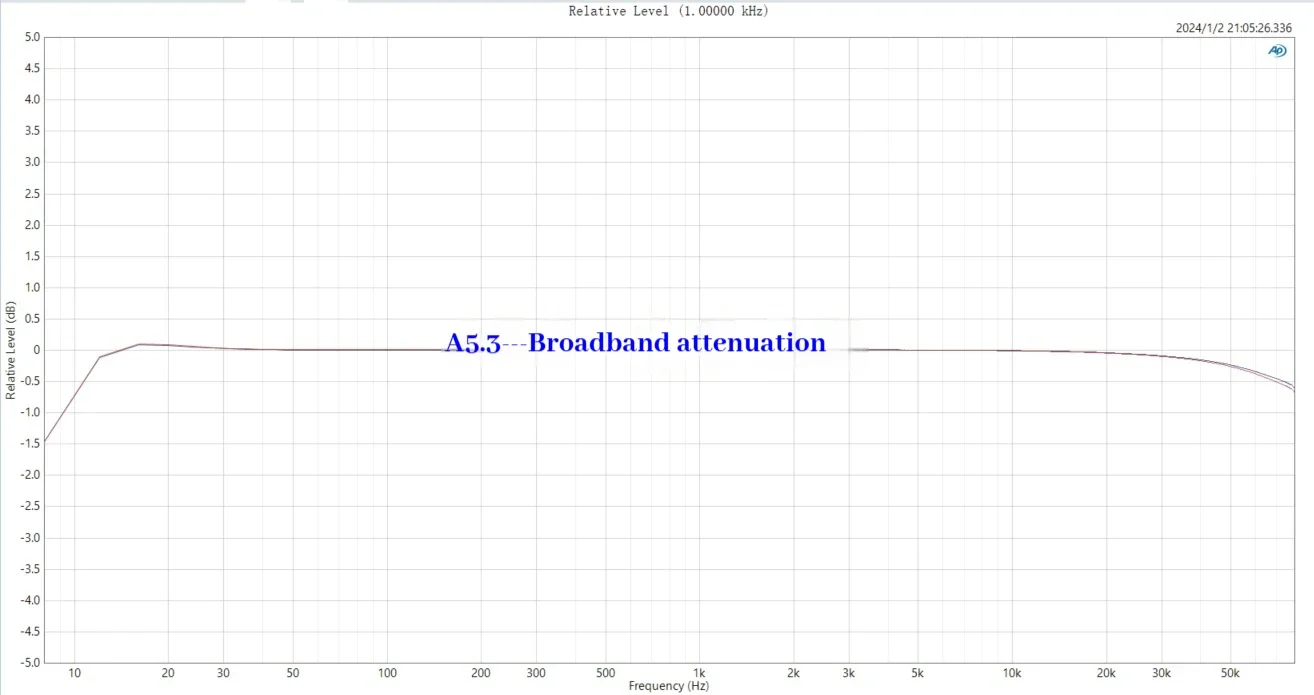

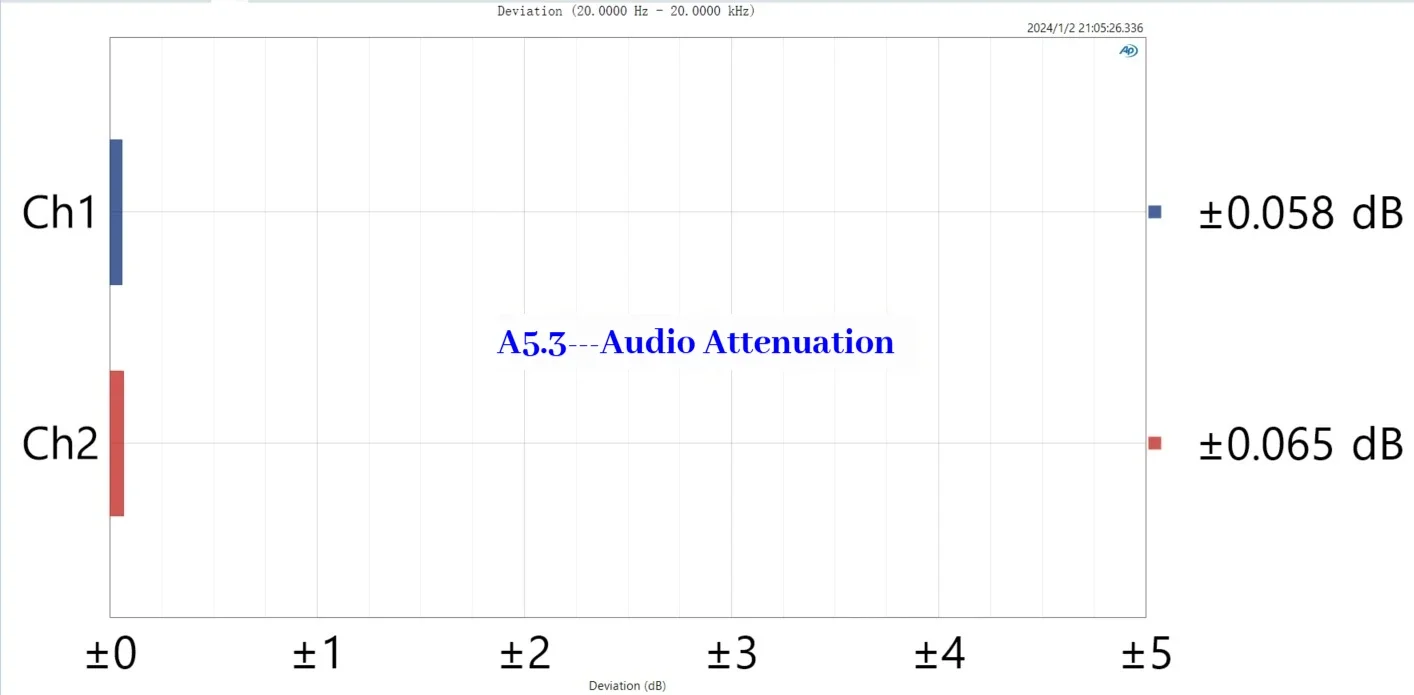

Frequency Response Bandwidth: ±0.058dB

Specifications:

Input Impedance: 33K ohms

Output Power: 50W/8 ohms 100W/4 Ohms

Overall Dimensions: 430*330*130mm

Overall Weight: 15kg

Quadrature Current: 400mA per tube

Quadrature Power Consumption: 133W

Quality Assurance

To ensure quality, every unit undergoes comprehensive AP testing to ensure it meets design specifications.

Tests include: bandwidth, noise (signal-to-noise ratio), dynamic range, distortion, intermodulation distortion, channel separation, amplification, etc.

72-hour stress test on the entire unit, 1-hour stress test at full 8-ohm amplifier load, and over 1 hour of listening practice.

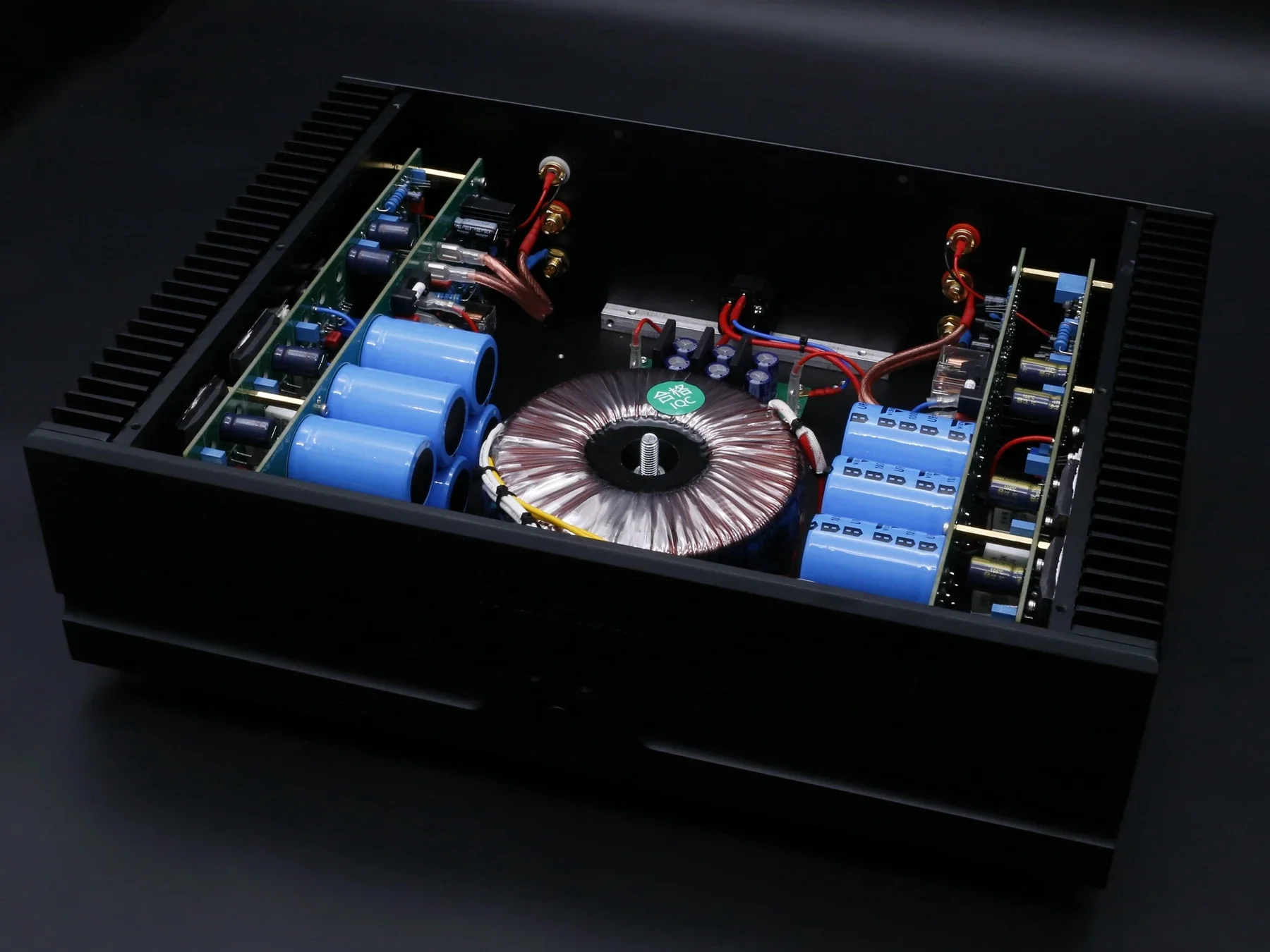

A5.3 BC capacitor version uses 12 BC capacitors

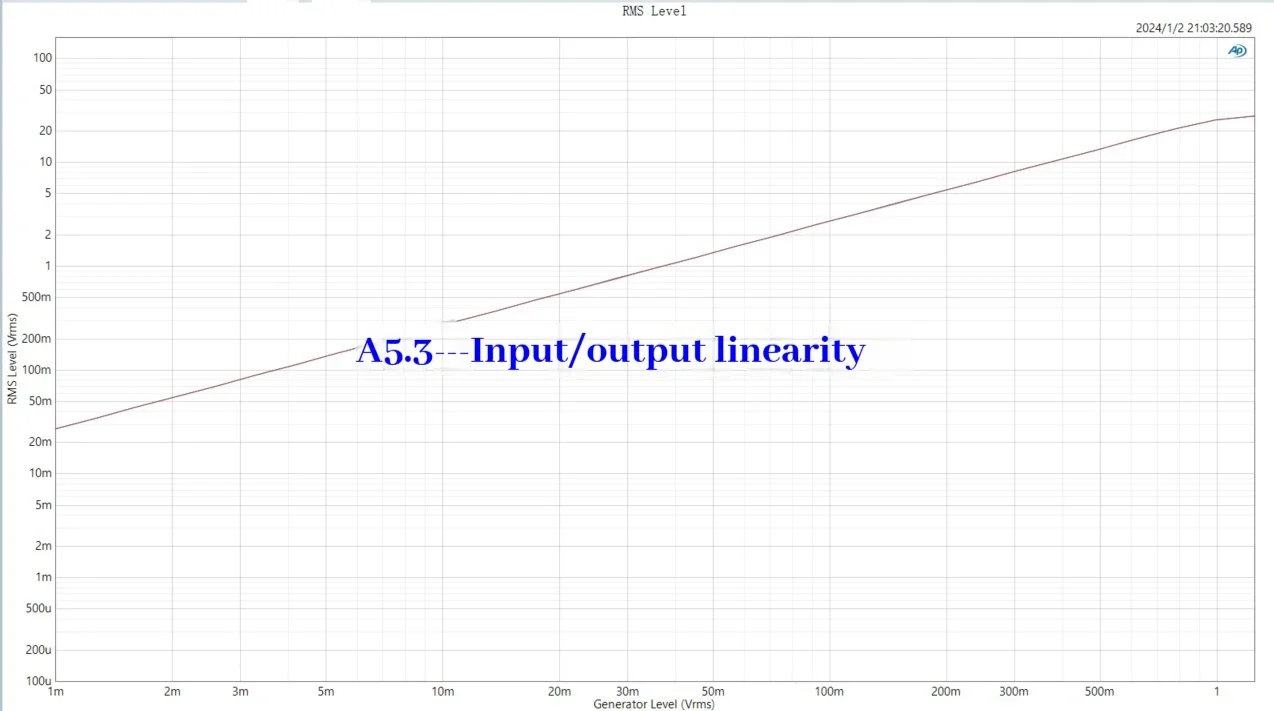

3rd generation A5.3 post-stage AP test parameters  with 8 ohm 800W load test data
