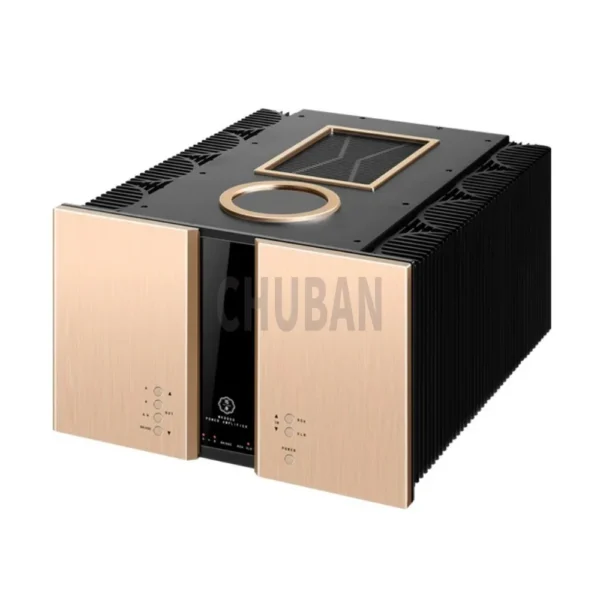

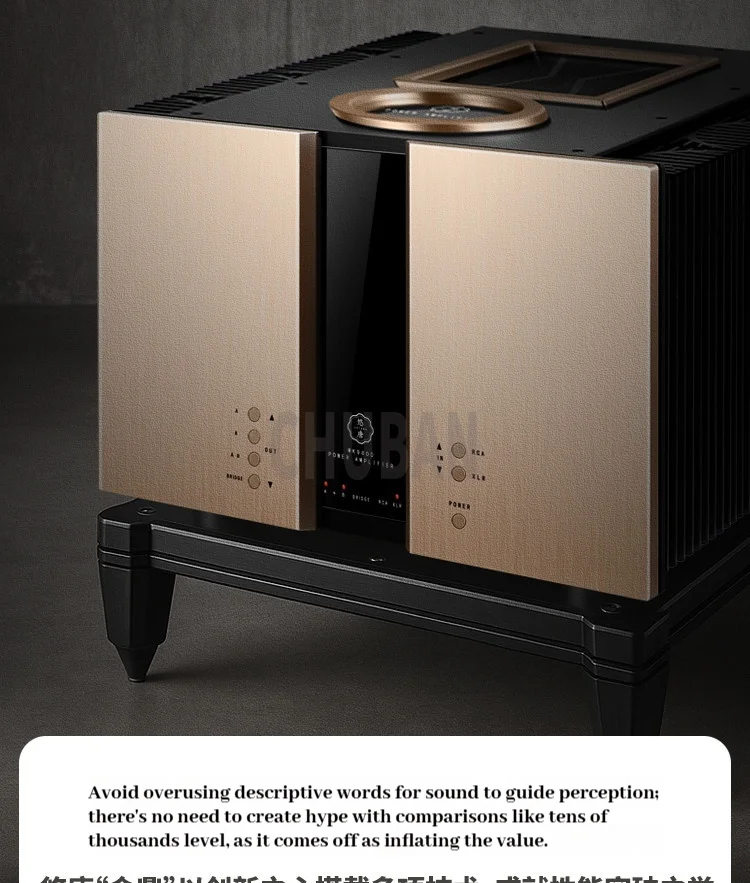

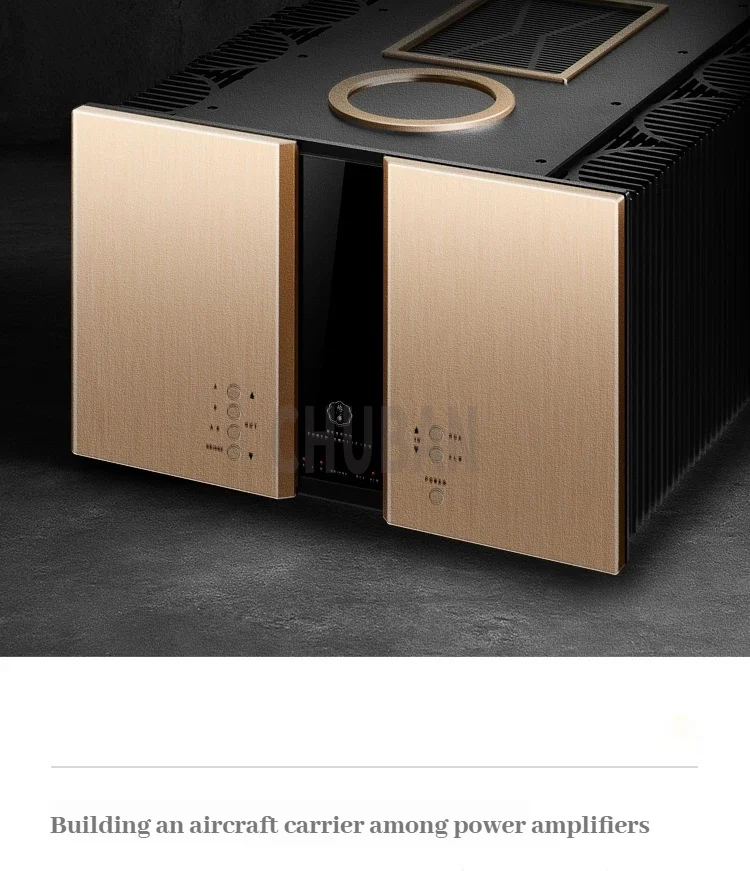

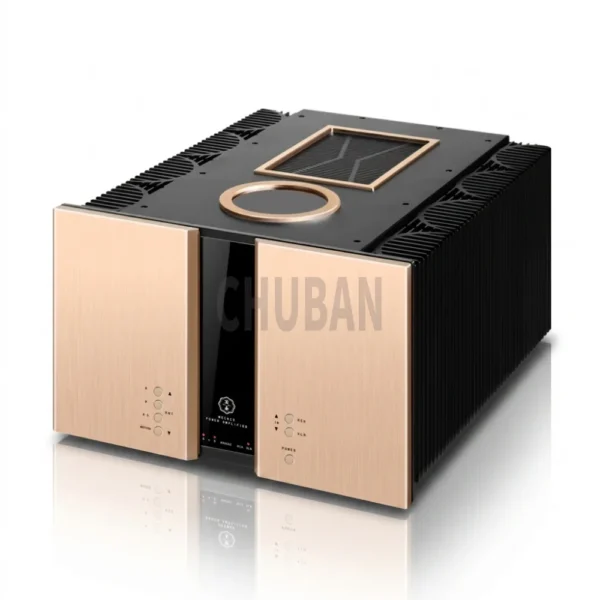

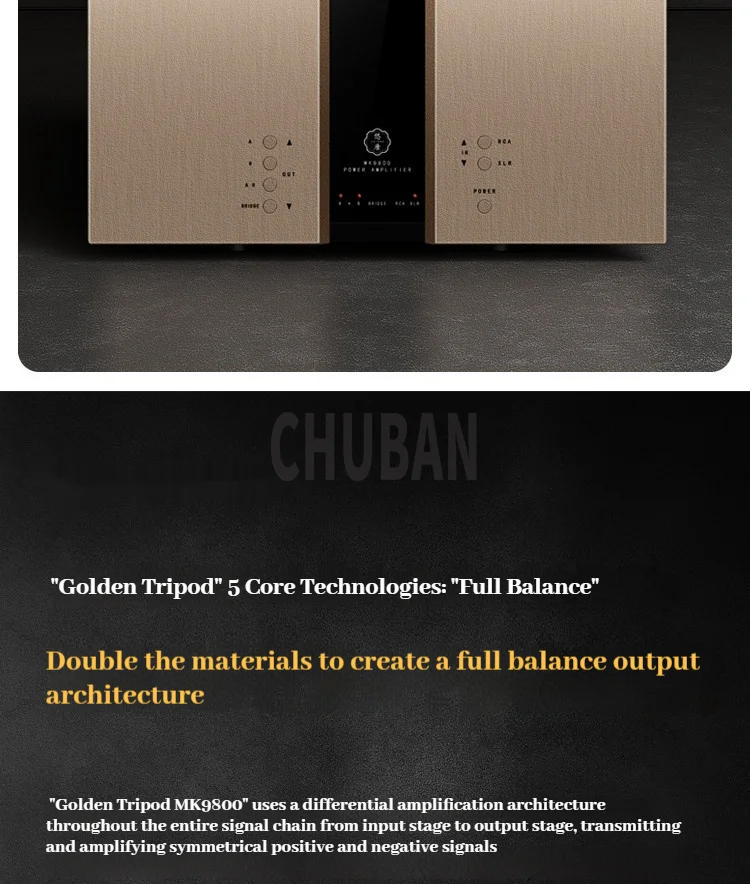

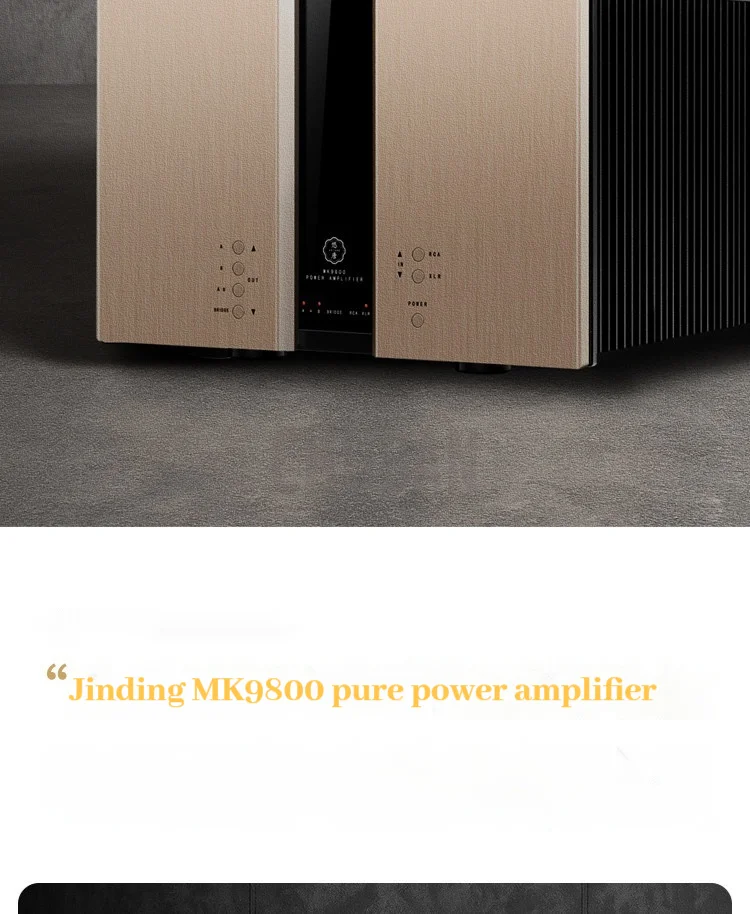

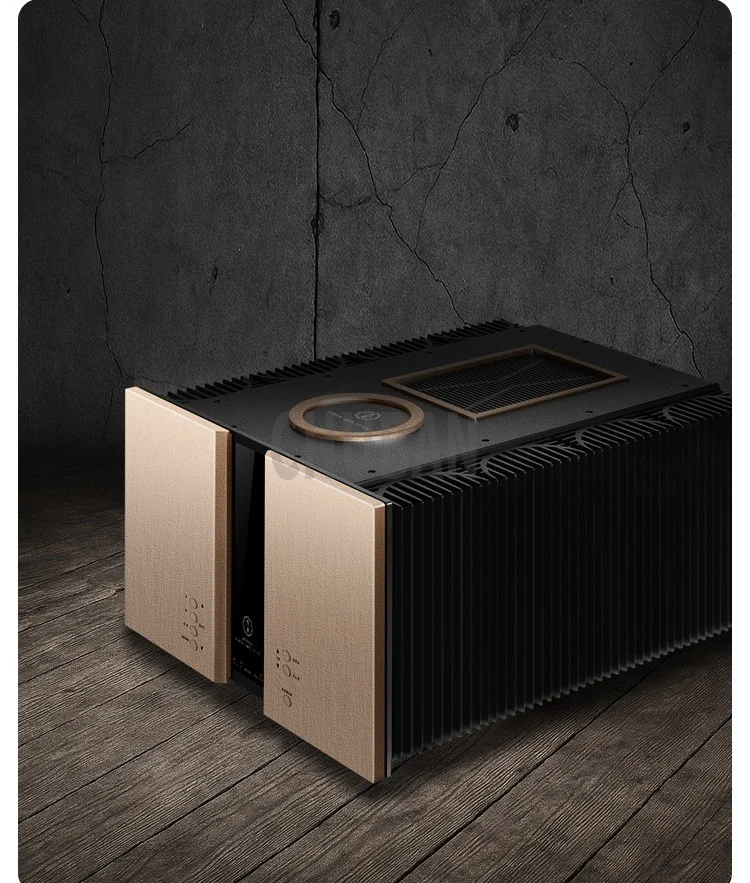

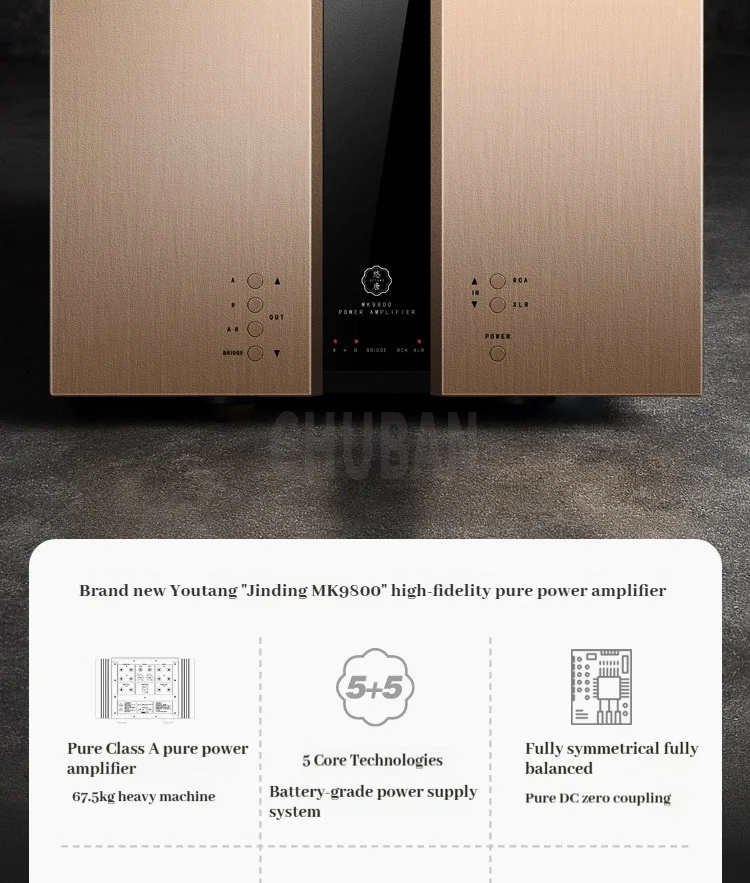

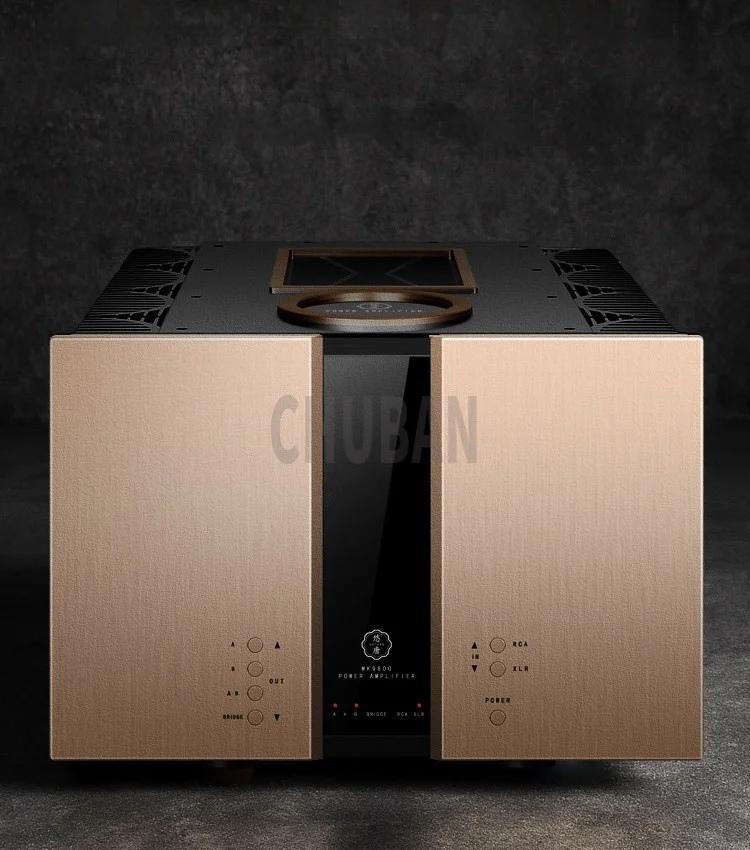

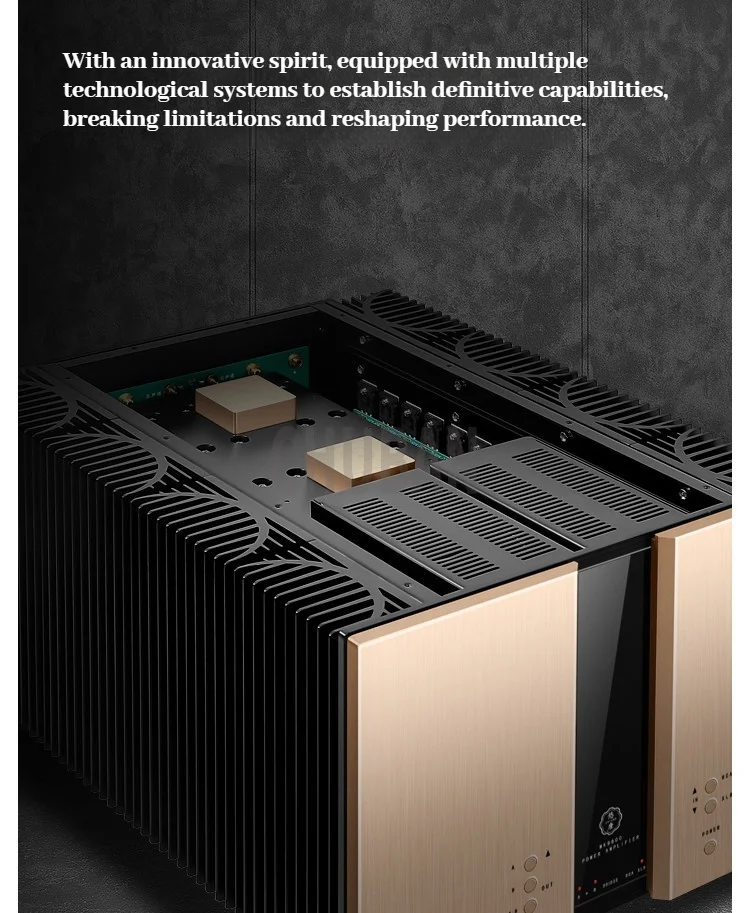

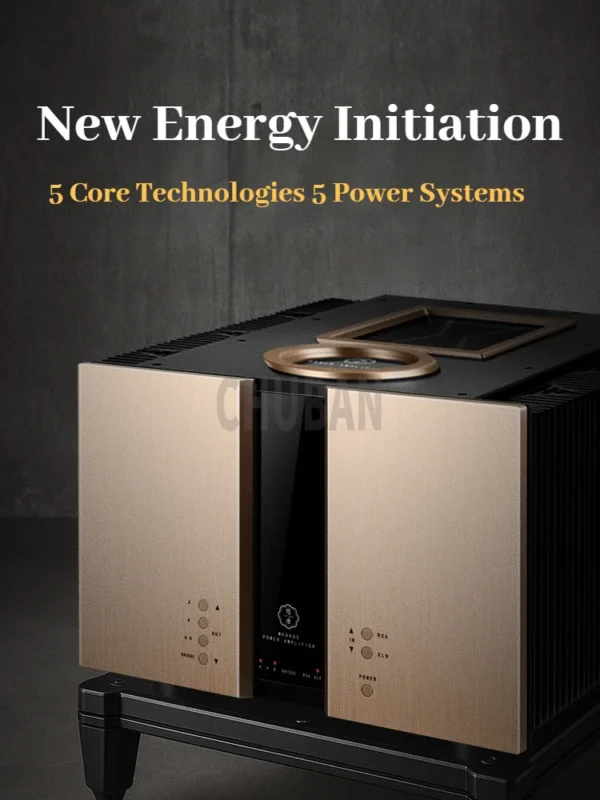

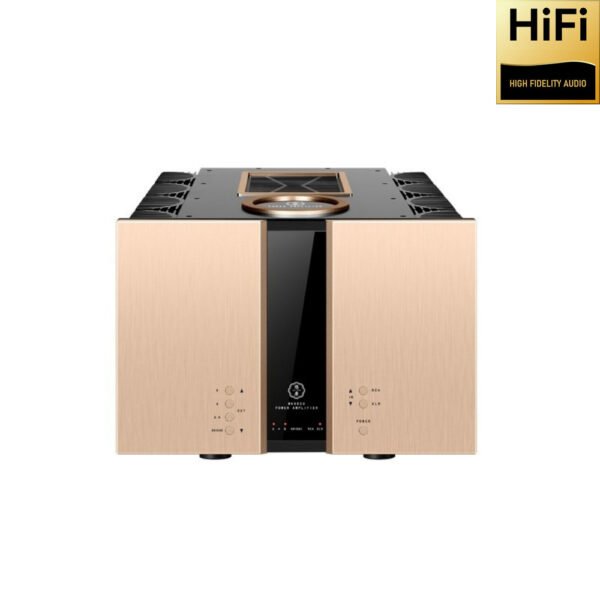

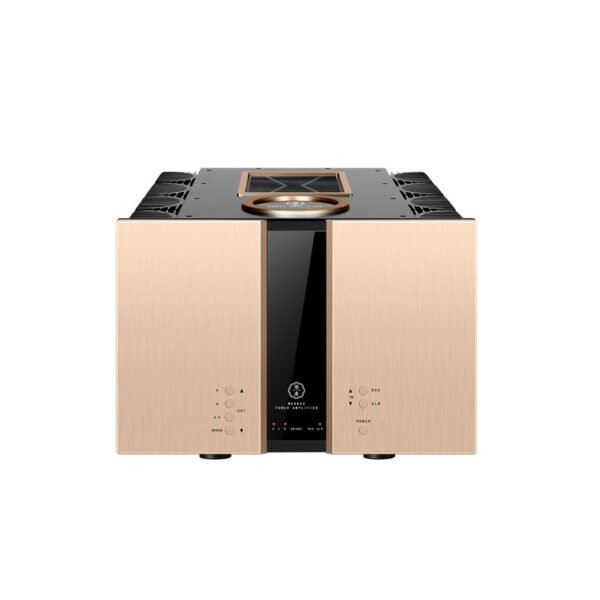

AWENHIFI MK9800 Fully Balanced Class A Power Amplifier for High-End Home Audio

• High-concerned chemical: None
• Package: Yes
• Channels: 2 (2.0)
• Model Number: MK9800
• Origin: Mainland China
• Certification: CE

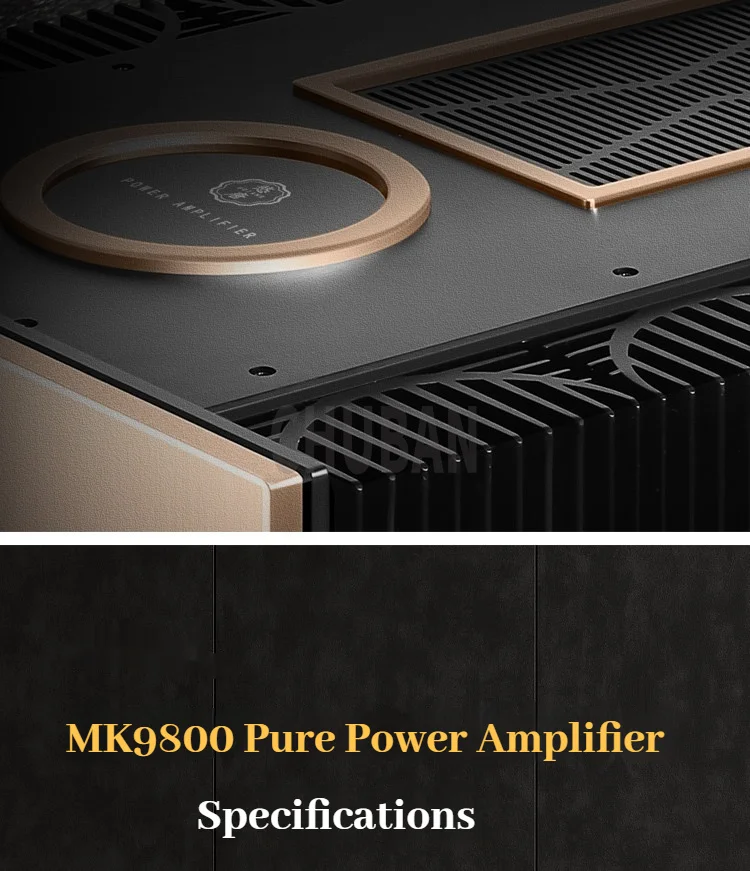

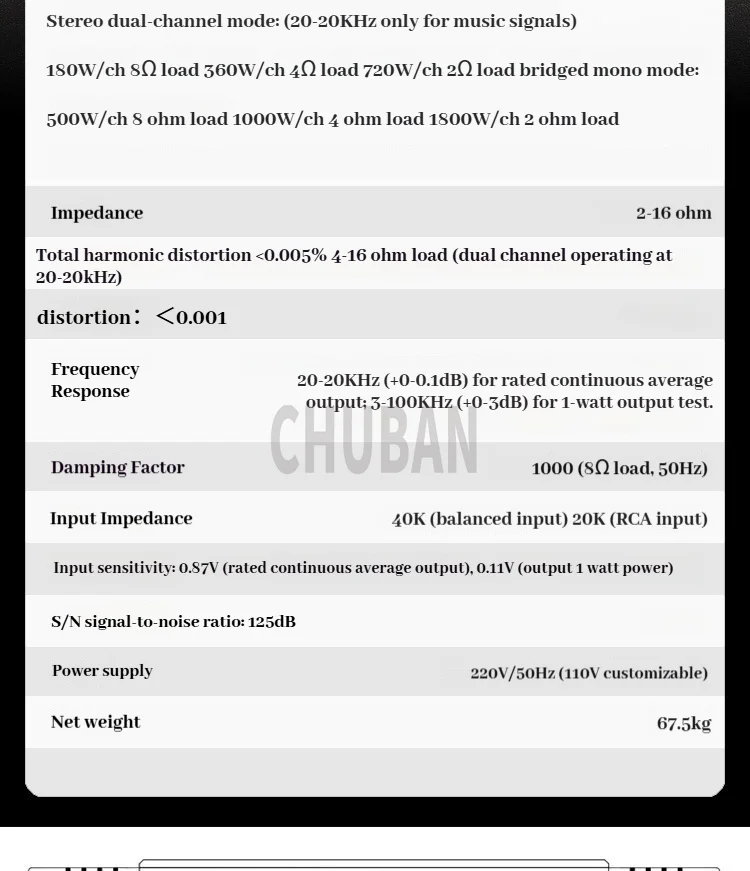

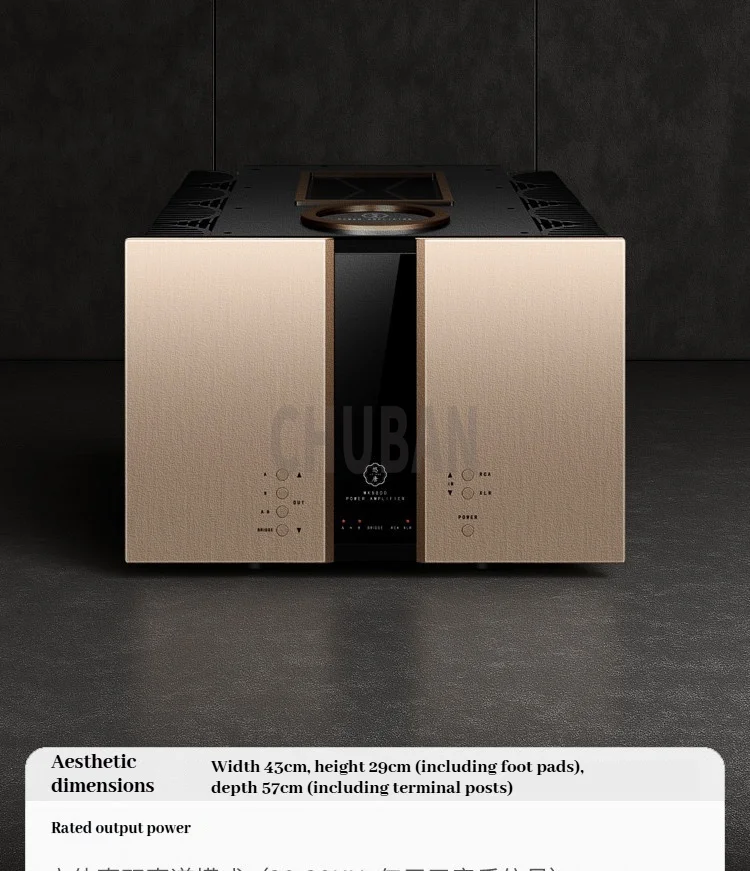

Product Specifications: Dimensions: Width 43cm, Height 29cm (including feet), Depth 57cm (including binding posts)
Rated Output Power:

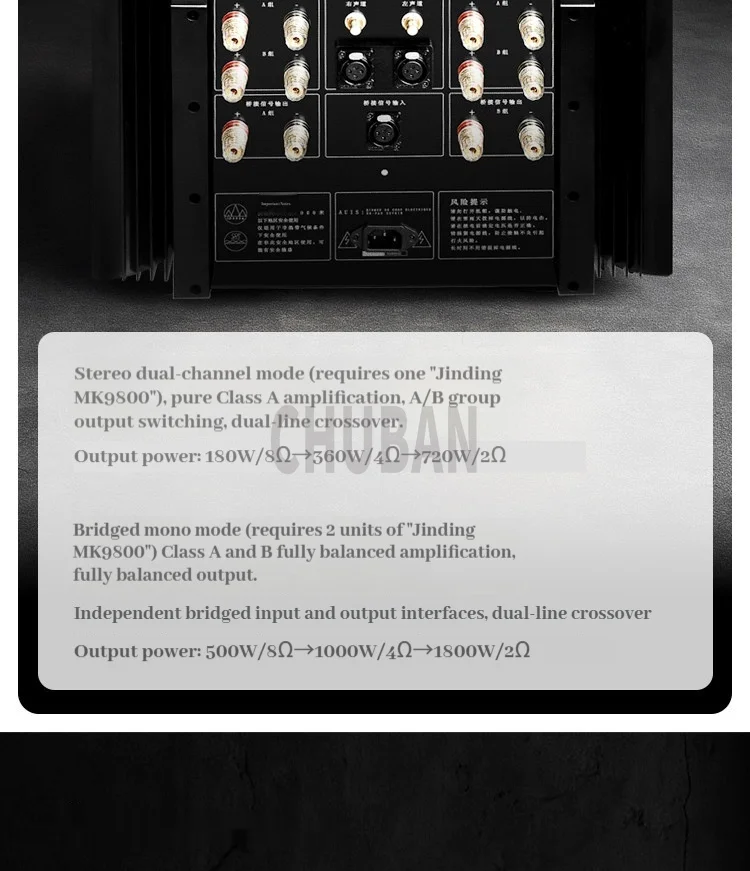

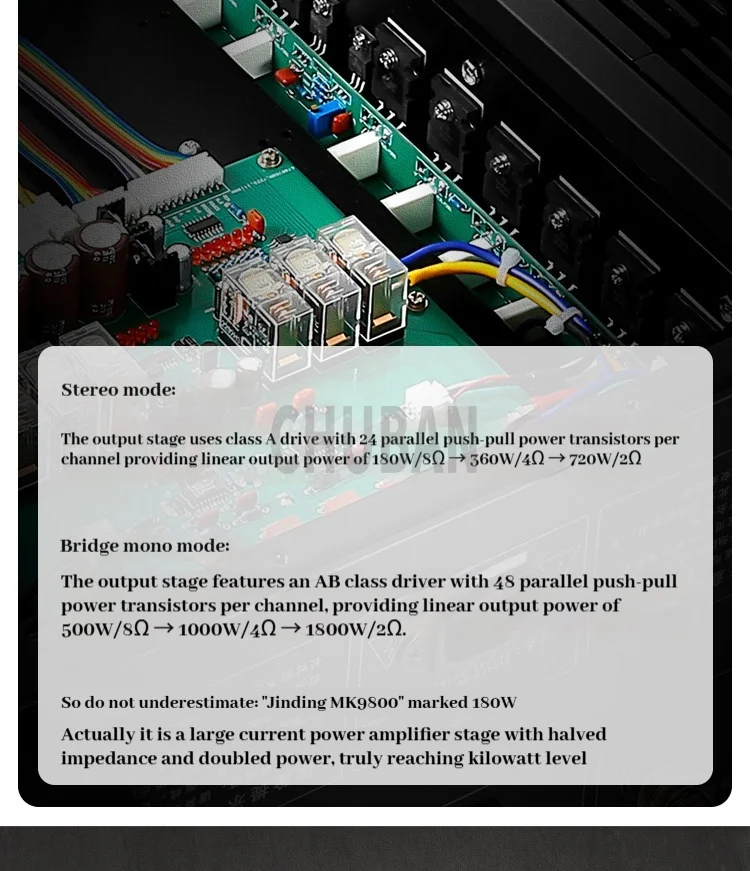

Stereo Dual-Channel Mode: (20-20kHz for music signals only) 180W/ch8 ohms load, 360W/ch4 ohms load, 720W/ch2 ohms load

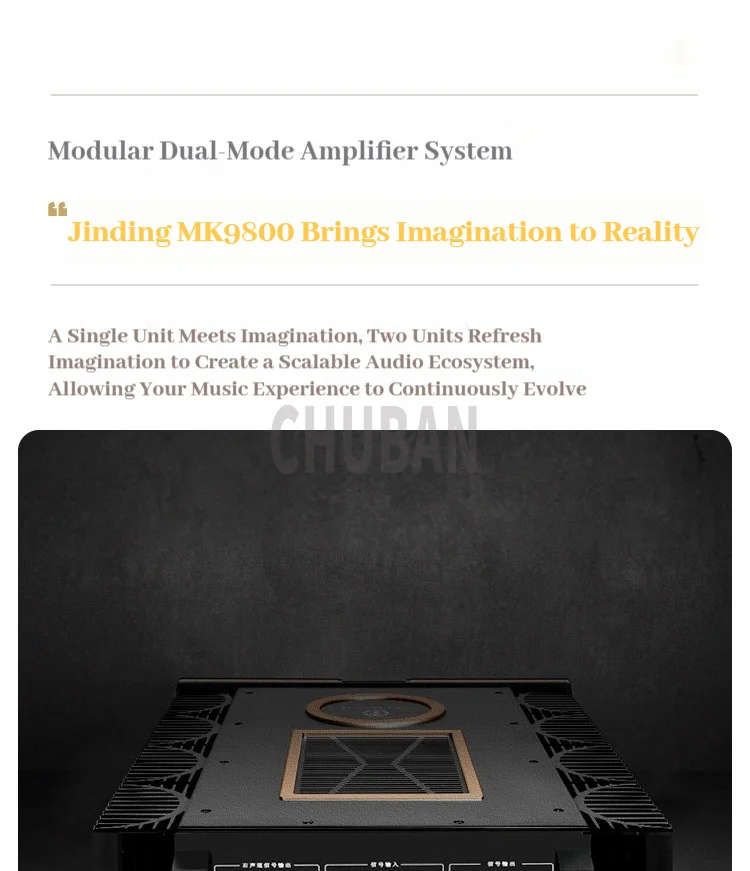

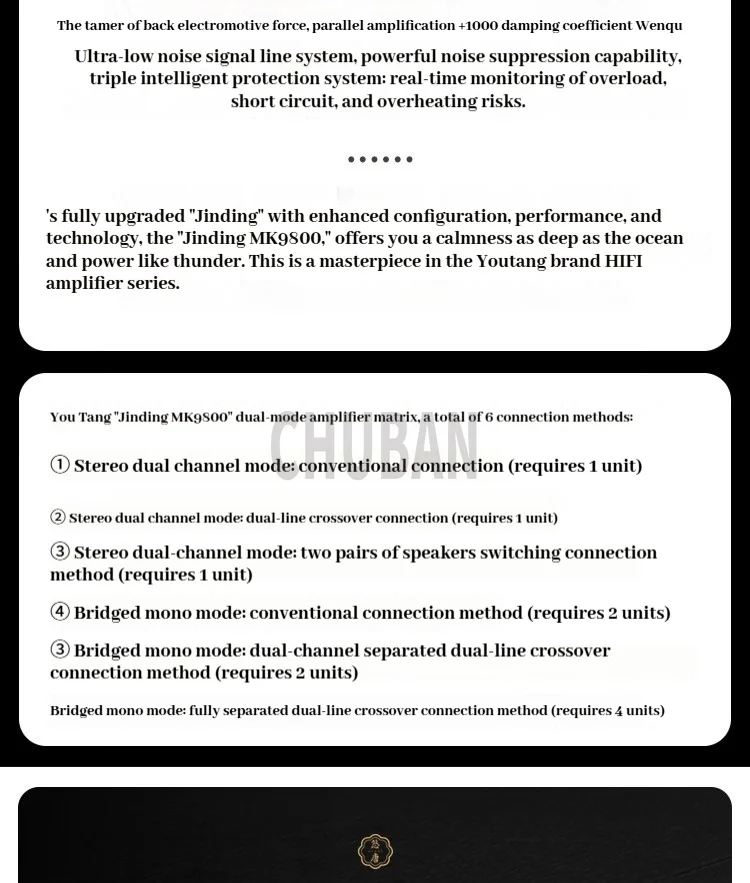

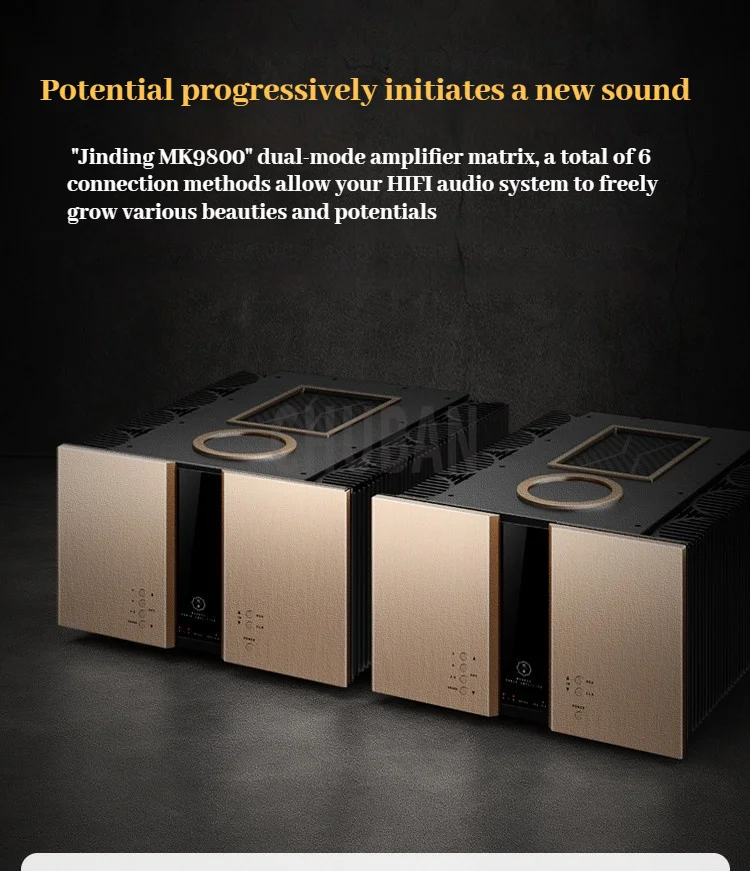

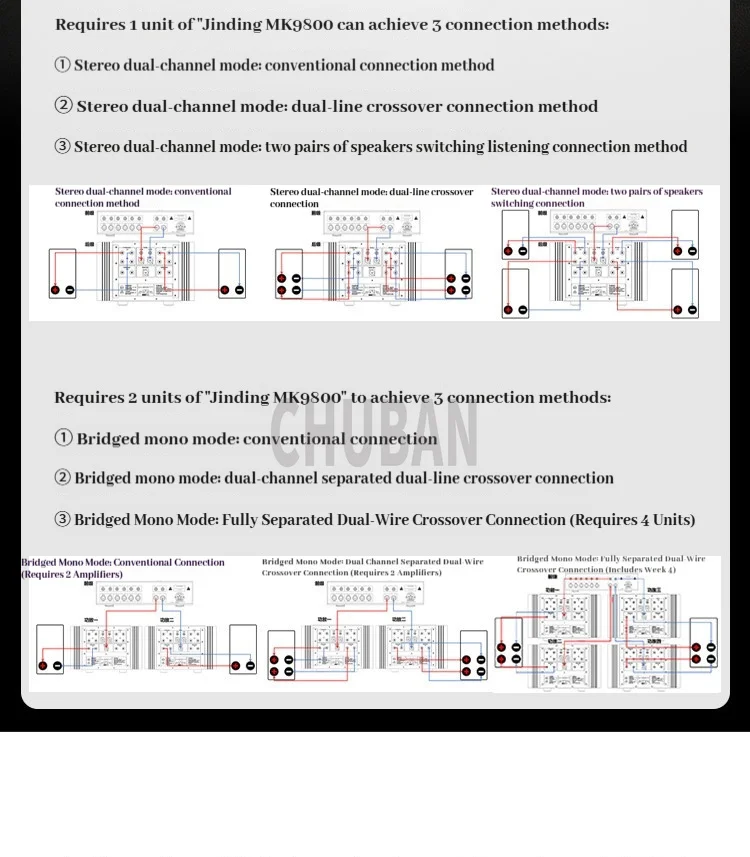

Bridged Mono Mode: 500W/ch8 ohms load, 1000W/ch4 ohms load 1800W/ch2 Ohm Load
Impedance: 2-16 ohms
Total Harmonic Distortion: <0.005% (4-16 ohm load, dual channels operating at 20-20kHz)
Intermodulation Distortion: <0.01%
Frequency Response: 20-20kHz (+0-0.1dB) for rated continuous average output
3-100kHz (+0-3dB) for 1W output testing

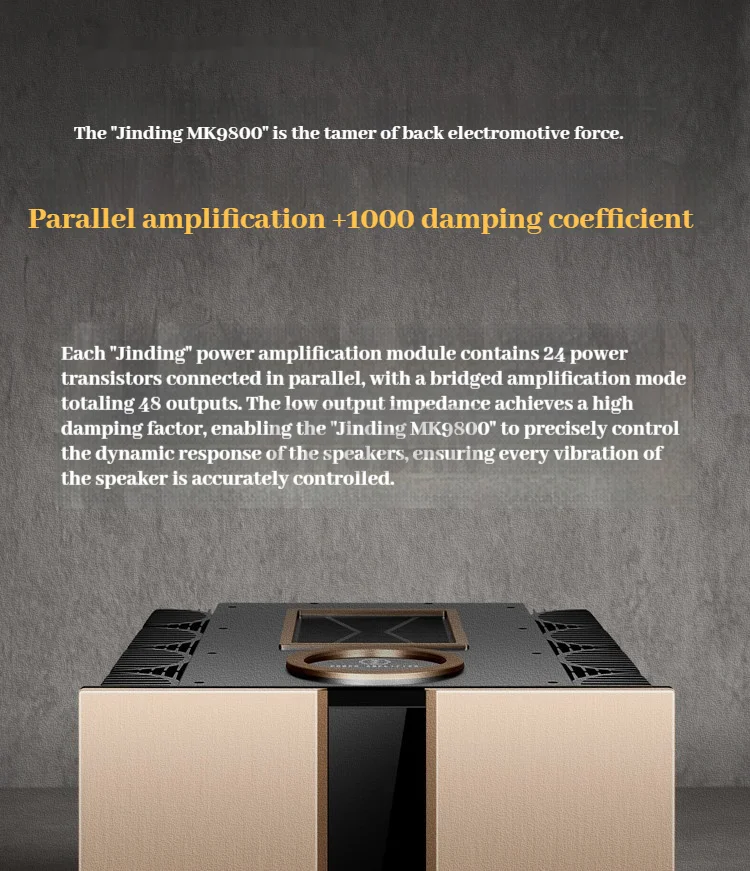

Damping Factor: 1000 (8Ω load, 50Hz)
Input Impedance: 40KΩ (balanced input), 20KΩ (RCA input)
Input Sensitivity: 0.87V (rated continuous average output), 0.11V (1W output power)
S/N Ratio: 125dB

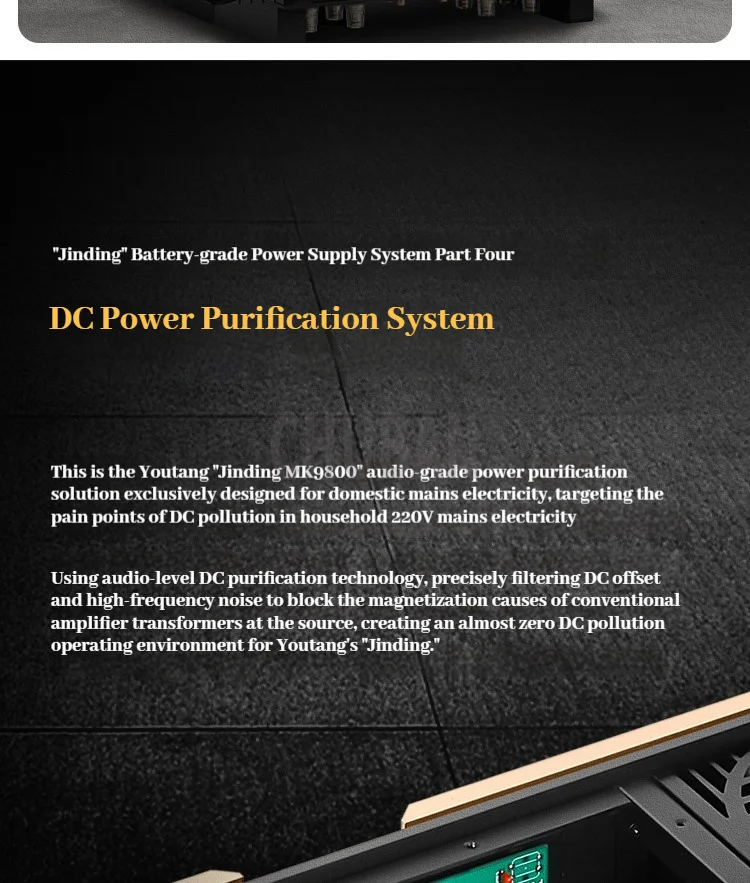

Power Supply: 220V/50Hz (110V customizable)
Net Weight: 135 catties
