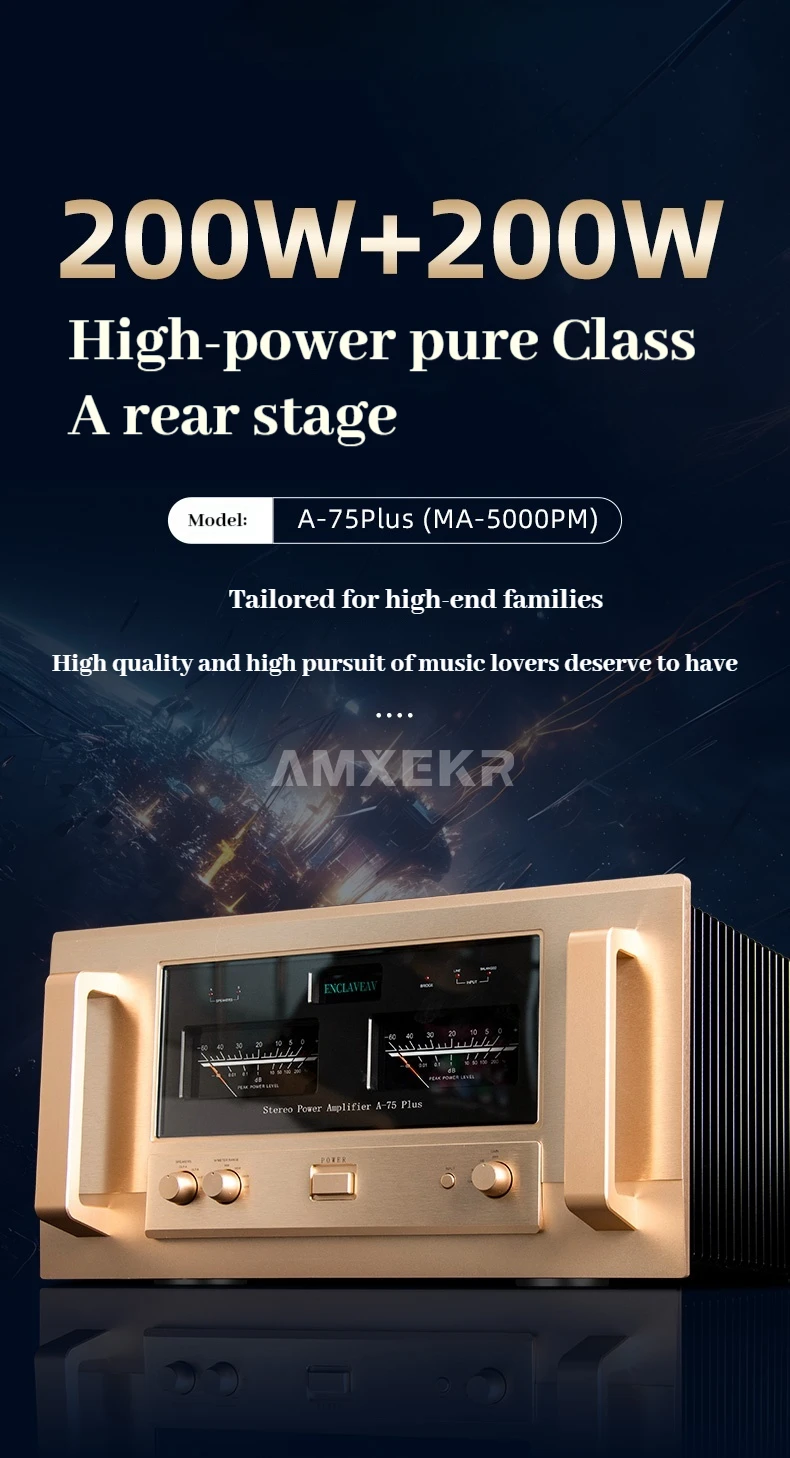

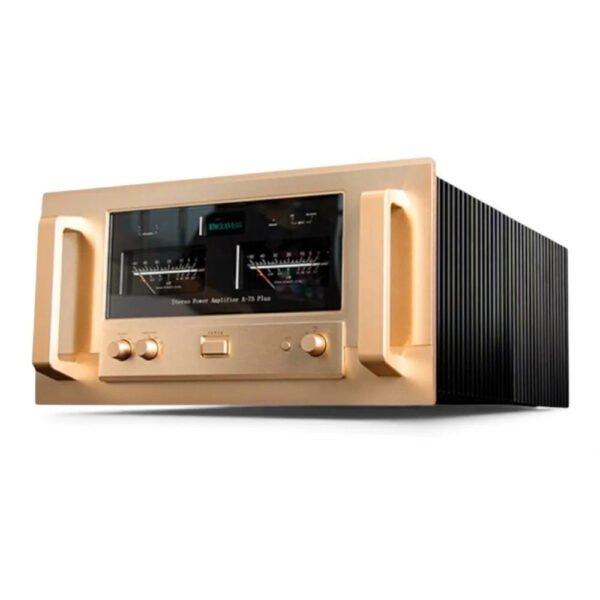

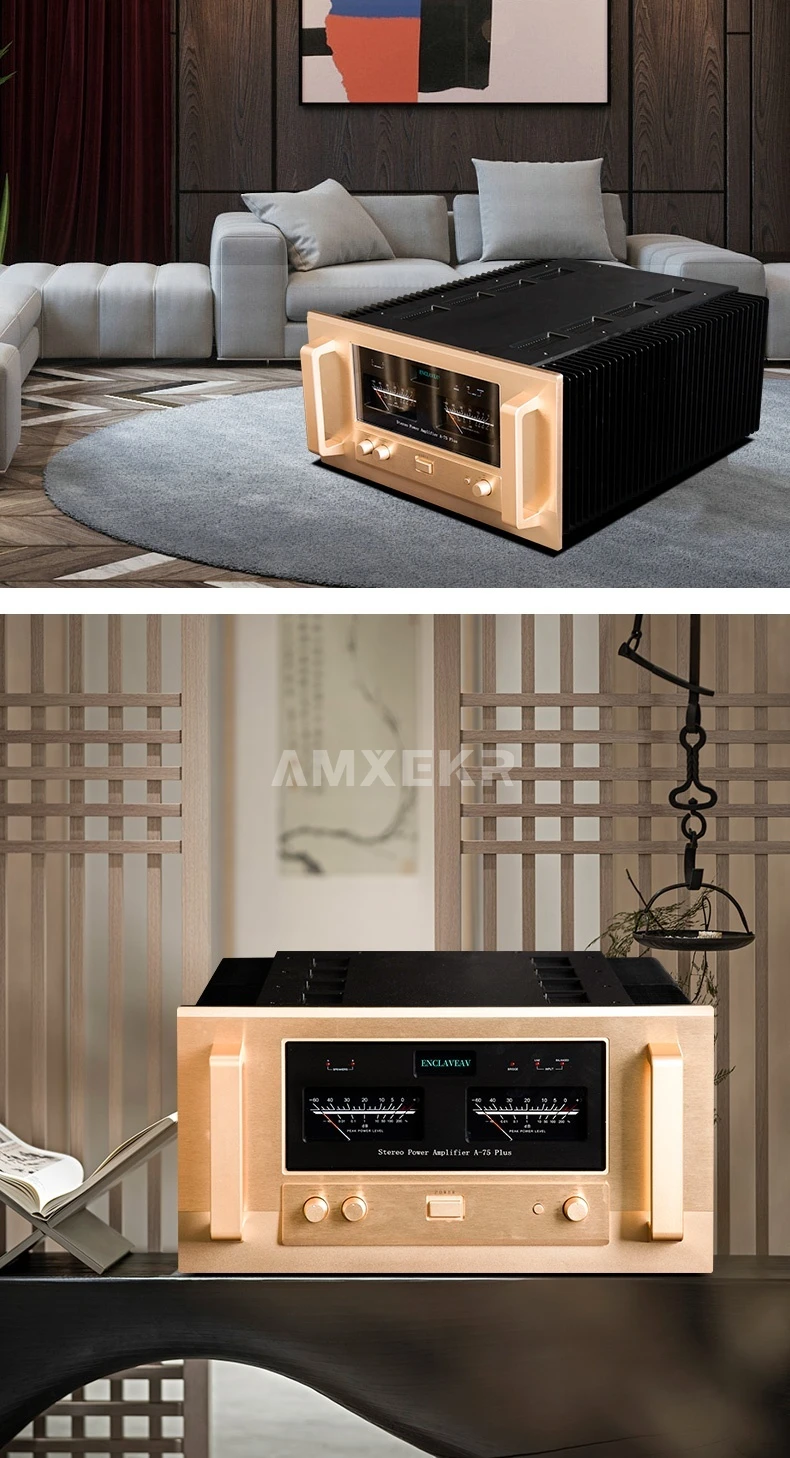

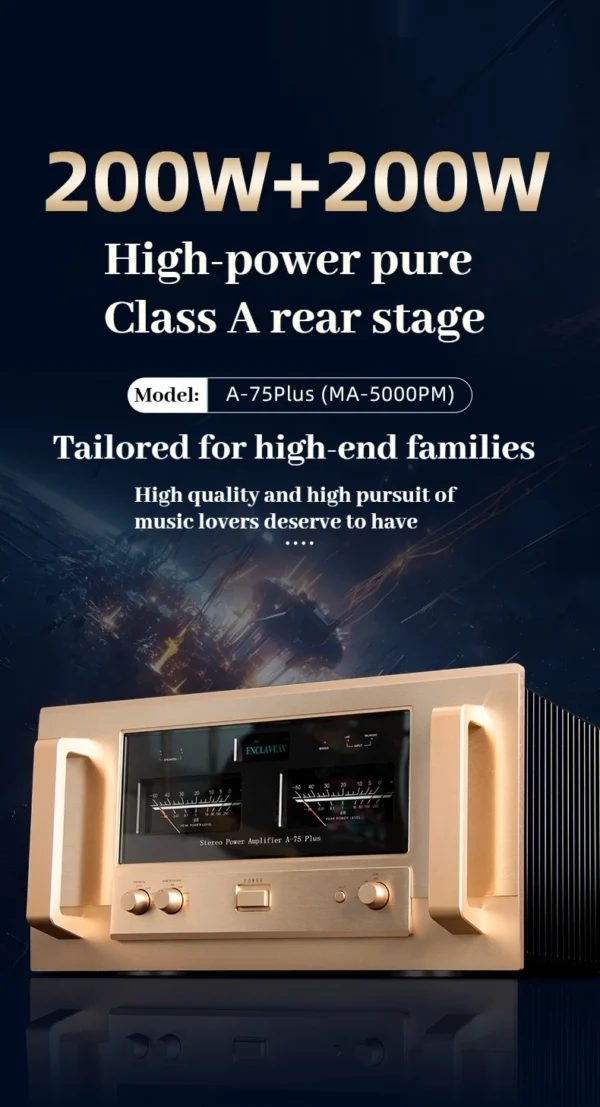

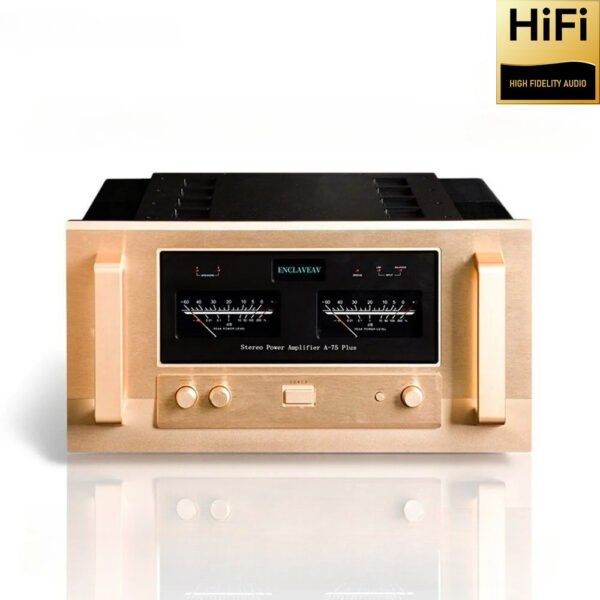

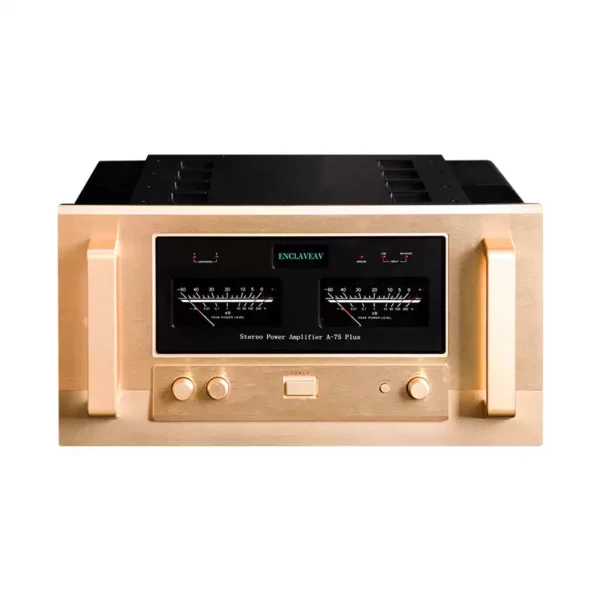

CHUBAN Reference Accuphase A75plus Power Amplifier: HiFi, High-Power, High-End, Fully Balanced Home Audio

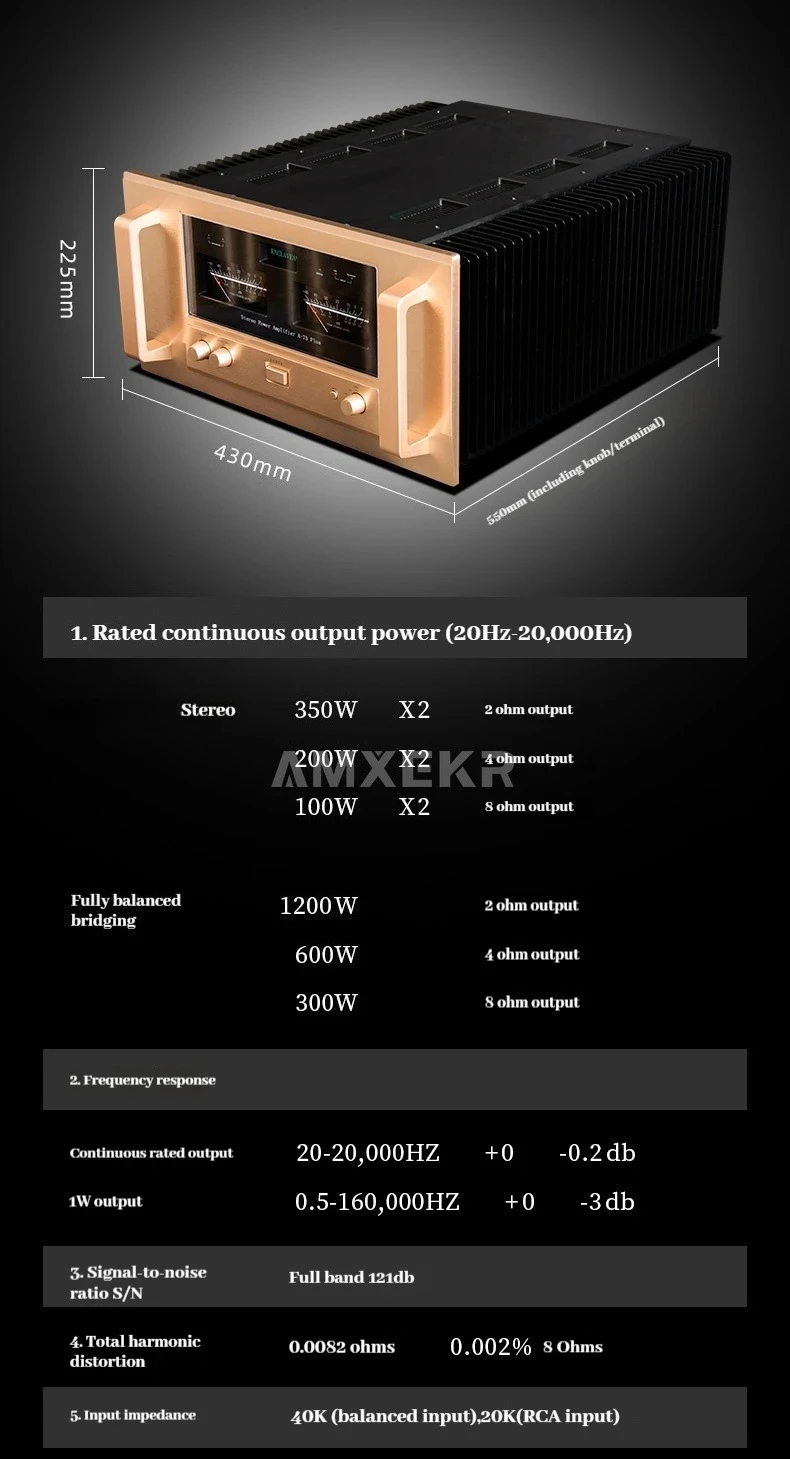

Technical parameters:
Product model: A75plus
1. Rated continuous output power (20Hz-20,000Hz)
Stereo 350Wx2 2 ohm output
200Wx2 4 ohm output
100Wx2 8 ohm output
Fully balanced bridge 1200W 2 ohm output
600W 4 ohm output
300W 8 ohm output
2. Frequency response
Rated continuous output 20-20,000Hz +0-0.2db
1W output 0.5-160,000Hz +0-3db
3. Signal-to-noise ratio S/N: full band 121db
4. Total harmonic distortion: 0.0082 ohm 0.002% 8 ohm

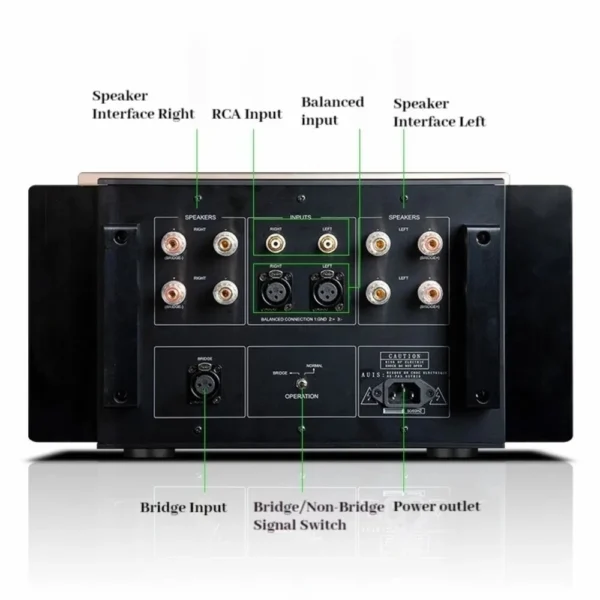

5. Input impedance: 40KΩ (balanced input), 20KΩ (RCA input)

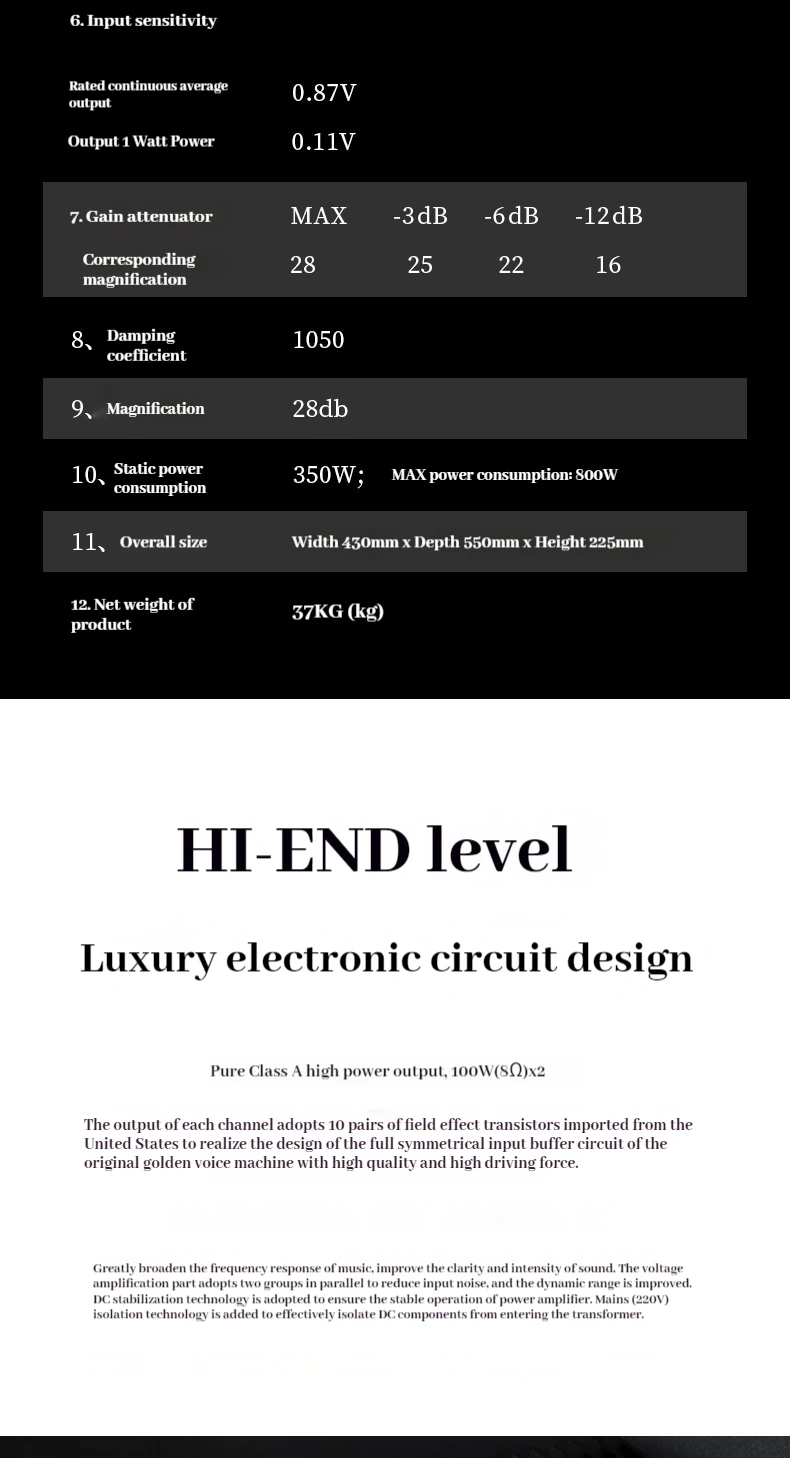

6. Input sensitivity
Rated continuous average output: 0.87V
Output 1 watt power: 0.11V
7. Gain attenuator: Maximum -3dB -6dB -12dB
Corresponding amplification factor: 28 25 22 16
8. Damping factor: 1050
9. Amplification factor: 28db
10. Static power consumption: 350W; Maximum power consumption: 800W
11. Dimensions: 430mm wide x 550mm deep x 225mm high
12. Net weight of product: 37KG
